Product Summary
The MAX202ECPE is a line driver/receiver which is designed for RS-232 and V.28 communications in harsh environments. Each transmitter output and receiver input is protected against ±15kV electrostatic discharge (ESD) shocks, without latchup. The various combinations of features are outlined in the Selector Guide. The drivers and receivers for all ten devices meet all EIA/TIA-232E and CCITT V.28 specifications at data rates up to 120kbps, when loaded in accordance with the EIA/TIA-232E specification. Applications include Notebook, Subnotebook, and Palmtop Computers, Battery-Powered Equipment and Hand-Held Equipment.
Parametrics
MAX202ECPE absolute maximum ratings: (1)VCC: -0.3V to +6V; (2)V+: (VCC - 0.3V) to +14V; (3)V-: -14V to +0.3V; (4)Operating Temperature Ranges: 0℃ to +70℃; (5)Storage Temperature Range: -65℃ to +165℃; (6)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX202ECPE features: (1)For Low-Voltage Applications; (2)For Low-Power Applications; (3)For Space-Constrained Applications; (4)For Low-Voltage or Data Cable Applications.

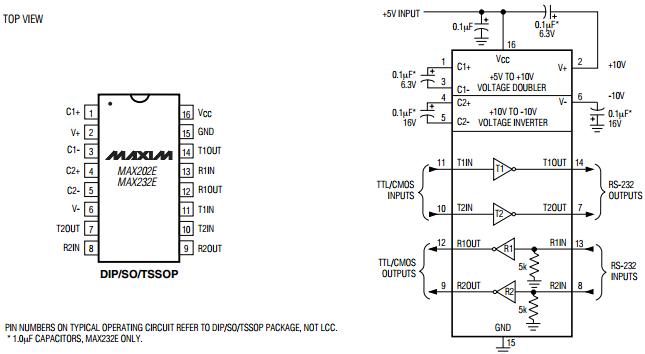

Diagrams

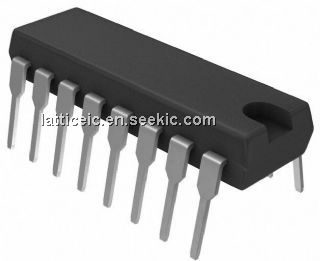

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX202ECPE |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX202ECPE+ |
Maxim Integrated Products |
RS-232 Interface IC 15kV ESD-Protected 5V RS232 Transceiver |
Data Sheet |
|
|
||||||||||||
