Product Summary
The MAX202ESE+ is a transceiver which is designed for RS-232 and V.28 communication interfaces where ±12V supplies are not available. On-board charge pumps convert the +5V input to the ±10V needed for RS-232 output levels. Applications include computers, laptops, palmtops, notebooks, battery-powered equipment and hand-held equipment.
Parametrics
MAX202ESE+ absolute maximum ratings: (1)VCC: -0.3 to +6V; (2)V+: (VCC-0.3) to +14V; (3)V-: +0.3 to -14V; (4)operating temperature ranges: -40℃ to +85℃; (5)Storage Temperature: -65℃ to +150℃; (6)lead temperature: +300℃.
Features
MAX202ESE+ features: (1)o.1μF to 10μF external capacitors; (2)120kbits/sec data rate; (3)low-power shutdown current; (4)designed for RS-232 and V.28 applications; (5)three-state TTL/CMOS receiver output.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

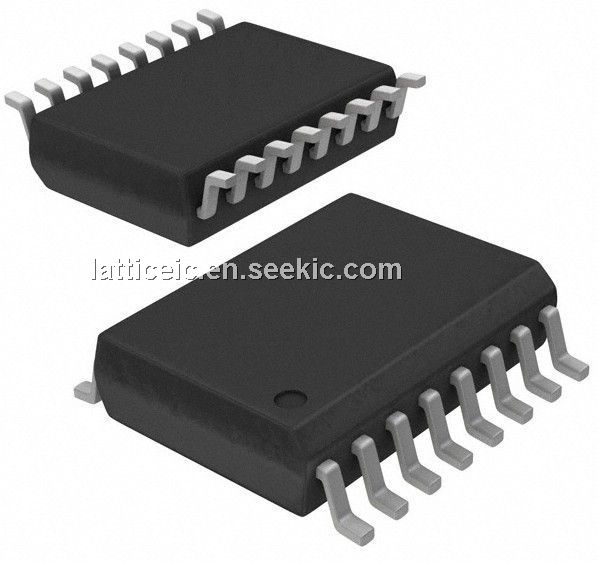

MAX202ESE+ |
Maxim Integrated Products |
RS-232 Interface IC 5V RS232 Transceiver w/0.1uF External Cap |
Data Sheet |
|
|
|||||||||||||
MAX202ESE+T |
Maxim Integrated Products |
RS-232 Interface IC 5V RS232 Transceiver w/0.1uF External Cap |
Data Sheet |
|
|
