MAX202ID

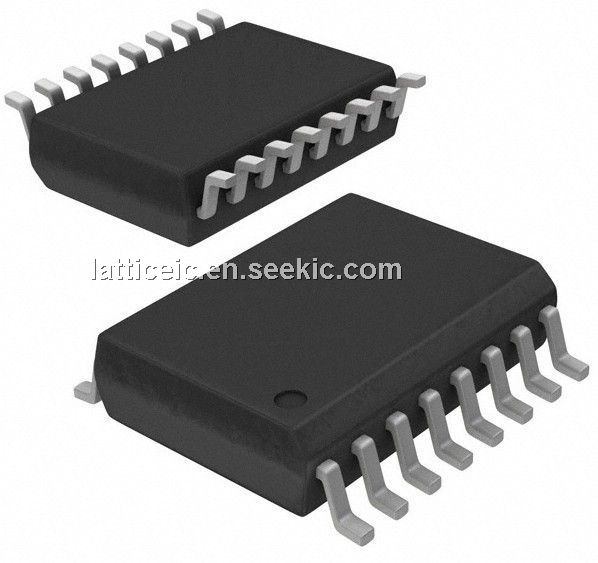

RS-232 line driver, 0.1μF, 5V, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	0.60 / Piece
51 ~ 500 :	0.45 / Piece
501 ~ 5000 :	0.30 / Piece

PartNumber:: MAX202ID

Brand:: Texas Instruments - TI | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 50000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Chan's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-06

From Other Seller

Part Number:MAX202ID
US $0.30 - 0.60
Quantity:

piece

Product Summary

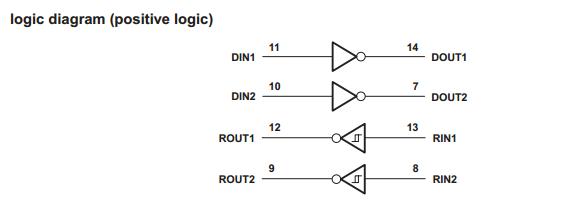

The MAX202ID is a dual RS-232 line driver. The device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 5-V supply. The device operates at data signaling rates up to 120 kbit/s and a maximum of 30-V/μs driver output slew rate. Applications include Battery-Powered Systems, PDAs, Notebooks, Laptops, Palmtop PCs, and Hand-Held Equipment.

Parametrics

MAX202ID absolute maximum ratings: (1)Supply voltage range, VCC (see Note 1): -0.3 V to 6 V ; (2)Positive charge pump voltage range, V+ (see Note 1): VCC - 0.3 V to 14 V; (3)Negative charge pump voltage range, V- (see Note 1): -14 V to 0.3 V; (4)Operating virtual junction temperature: 150℃; (5)Storage temperature range: -65 to 150℃.

Features

MAX202ID features: (1)ESD Protection for RS-232 Bus Pins -±15-kV - Human-Body Model; (2)Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards; (3)Operates at 5-V VCC Supply; (4)Operates Up To 120 kbit/s; (5)External Capacitors: 4 × 0.1μF.
