Product Summary
The MAX232ESE+ is a line driver/receiver which is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available. These parts are especially useful in battery-powered systems, since their low-power shutdown mode reduces power dissipation to less than 5µW. Applications include Portable Computers, Low-Power Modems, Interface Translation, Battery-Powered RS-232 Systems and Multidrop RS-232 Networks.
Parametrics
MAX232ESE+ absolute maximum ratings: (1)VCC: -0.3V to +6V; (2)V+ (Note 1): (VCC - 0.3V) to +14V; (3)V- (Note 1): +0.3V to -14V; (4)TIN: -0.3V to (VCC - 0.3V); (5)Storage Temperature Range: -65℃ to +160℃; (6)Lead Temperature (soldering, 10s): +300℃.
Features
MAX232ESE+ features: (1)For Low-Voltage, Integrated ESD Application; (2)For Low-Cost Applications.

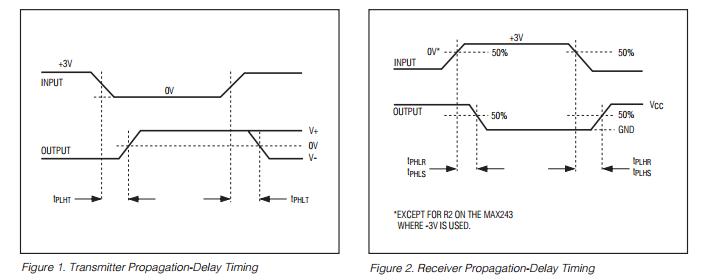

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX232ESE+ |
Maxim Integrated Products |
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver |
Data Sheet |
|
|
||||||||||||
|
MAX232ESE+T |
Maxim Integrated Products |
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver |
Data Sheet |
|
|
||||||||||||
