MAX3085EPA

high-speed transceiver, 0.3V, 500kbps, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.35~0.70 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	0.70 / Piece
51 ~ 500 :	0.55 / Piece
501 ~ 5000 :	0.35 / Piece

PartNumber:: MAX3085EPA

Brand:: Maxim Integrated Products - Maxim | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 50000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Chan's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-07

From Other Seller

Part Number:MAX3085EPA
US $0.35 - 0.70
Quantity:

piece

Product Summary

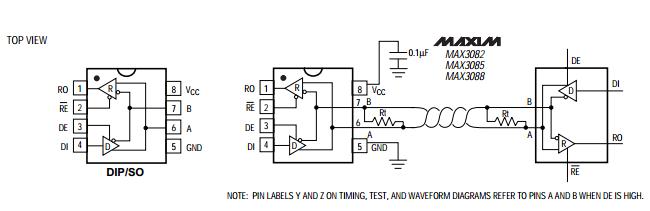

The MAX3085EPA is a high-speed transceiver for RS-485/RS-422 communication contain one driver and one receiver. These devices feature fail-safe circuitry, which guarantees a logic-high receiver output when the receiver inputs are open or shorted. This means that the receiver output will be a logic high if all transmitters on a terminated bus are disabled (high impedance). The MAX3085EPA offers higher driver output slew-rate limits, allowing transmit speeds up to 500kbps. Applications include RS-422/RS-485 Communications, Level Translators, Transceivers for EMI-Sensitive Applications and Industrial-Control Local Area Networks.

Parametrics

MAX3085EPA absolute maximum ratings: (1)Supply Voltage (VCC): +7V; (2)Control Input Voltage (RE, DE): -0.3V to (VCC + 0.3V); (3)Driver Input Voltage (DI): -0.3V to (VCC + 0.3V); (4)Driver Output Voltage (A, B, Y, Z): ±13V; (5)Receiver Input Voltage (A, B): ±13V; (6)Receiver Input Voltage, Full Duplex (A, B): ±25V; (7)Receiver Output Voltage (RO): -0.3V to (VCC + 0.3V; (8)Operating Temperature Ranges: -40℃ to +85℃; (9)Storage Temperature Range: -65℃ to +150℃; (10)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX3085EPA features: (1)True Fail-Safe Receiver While Maintaining EIA/TIA-485 Compatibility; (2)Enhanced Slew-Rate Limiting Facilitates Error-Free Data Transmission; (3)Allow Up to 256 Transceivers on the Bus.
