MAX3485CSA

low-power transceiver, 3.3V, 727mW, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	0.40 / Piece
51 ~ 500 :	0.30 / Piece
501 ~ 5000 :	0.20 / Piece

PartNumber:: MAX3485CSA

Brand:: Maxim Integrated Products - Maxim | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 50000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Chan's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-05

From Other Seller

Part Number:MAX3485CSA
US $0.20 - 0.40
MAX3485CSA+T

US $0.60 - 0.85 / Piece
(0) Remove
Quantity:

piece

Product Summary

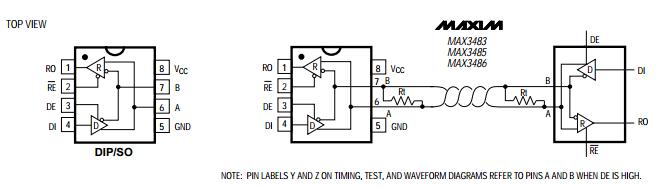

The MAX3485CSA is a 3.3V, low-power transceiver for RS-485 and RS-422 communication. Each part contains one driver and one receiver. The MAX3485CSA transmits at up to 10Mbps. Drivers are short-circuit current limited and are protected against excessive power dissipation by thermal shutdown circuitry that places the driver outputs into a high-impedance state. The receiver input has a fail-safe feature that guarantees a logic-high output if both inputs are open circuit. Applications include Low-Power RS-485/RS-422 Transceivers, Telecommunications, Transceivers for EMI-Sensitive Applications and Industrial-Control Local Area Network.

Parametrics

MAX3485CSA absolute maximum ratings: (1)Supply Voltage (VCC): 7V; (2)Control Input Voltage (RE, DE): -0.3V to 7V; (3)Driver Input Voltage (DI): -0.3V to 7V; (4)Driver Output Voltage (A, B, Y, Z): -7.5V to 12.5V; (5)Receiver Input Voltage (A, B): -7.5V to 12.5V; (6)Receiver Output Voltage (RO): -0.3V to (VCC + 0.3V); (7)Continuous Power Dissipation 8-Pin Plastic DIP: 727mW; (8)Continuous Power Dissipation 8-Pin SO: 471mW; (9)Storage Temperature Range: -65℃ to +160℃; (10)Lead Temperature (soldering, 10sec): +300℃; (11)Operating Temperature Ranges: 0℃ to +70℃.

Features

MAX3485CSA features: (1)Operate from a Single 3.3V Supply—No Charge Pump!; (2)Interoperable with +5V Logic; (3)8ns Max Skew; (4)2nA Low-Current Shutdown Mode; (5)-7V to +12V Common-Mode Input Voltage Range; (6)Allows up to 32 Transceivers on the Bus; (7)Full-Duplex and Half-Duplex Versions Available; (8)Industry Standard 75176 Pinout; (9)Current-Limiting and Thermal Shutdown for Driver Overload Protection.
