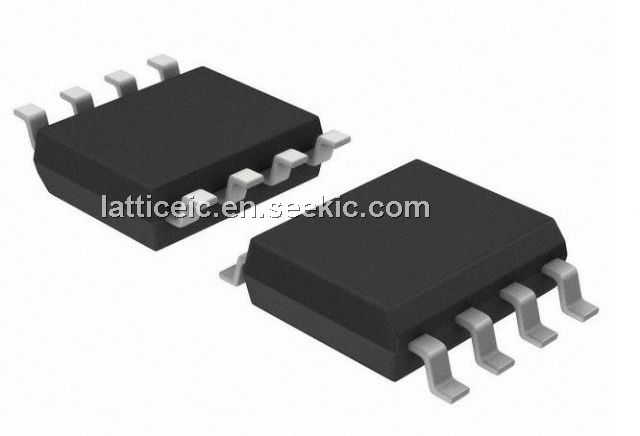

Product Summary

The MAX3485ECSA+ is a slew-Rate-Limited Transceiver. Each device contains one driver and one receiver. The MAX3485ECSA+ features slew-rate-limited drivers that minimize EMI and reduce reflections caused by improperly terminated cables, allowing error-free data transmission at data rates up to 250kbps. The partially slewrate-limited MAX3485ECSA+ transmits at up to 12Mbps. Applications include Telecommunications, Industrial-Control Local Area Networks, Transceivers for EMI-Sensitive Applications, Integrated Services Digital Networks and Packet Switching.

Parametrics

MAX3485ECSA+ absolute maximum ratings: (1)Supply Voltage (VCC): +7V; (2)Control Input Voltage (RE, DE): -0.3V to +7V; (3)Driver Input Voltage (DI): -0.3V to +7V; (4)Driver Output Voltage (A, B, Y, Z): -7.5V to +12.5V; (5)Receiver Input Voltage (A, B): -7.5V to +12.5V; (6)Receiver Output Voltage (RO): -0.3V to (VCC + 0.3V); (7)Storage Temperature Range: -65℃ to +150℃; (8)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX3485ECSA+ features: (1)ESD Protection for RS-485 I/O Pins; (2)Operate from a Single +3.3V Supply—No Charge Pump Required; (3)Interoperable with +5V Logic; (4)-7V to +12V Common-Mode Input Voltage Range; (5)Full-Duplex and Half-Duplex Versions Available; (6)Current-Limiting and Thermal Shutdown for Driver Overload Protection.

Diagrams

MAX3485ECSA+ pin configuration and Typical Operating Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAX3485ECSA+
MAX3485ECSA+
Maxim Integrated Products
RS-422/RS-485 Interface IC 3.3V 12Mbps Transceiver
Data Sheet
0-1: $3.02
1-25: $2.02
25-50: $1.46
50-100: $1.44
MAX3485ECSA+T
MAX3485ECSA+T
Maxim Integrated Products
RS-422/RS-485 Interface IC 3.3V 12Mbps Transceiver
Data Sheet
0-2075: $1.27
2075-2500: $1.27
