MAX3485ESA

low-power transceiver, 3.3V, 10Mbps, 7V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.25~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	0.50 / Piece
51 ~ 500 :	0.40 / Piece
501 ~ 5000 :	0.25 / Piece

PartNumber:: MAX3485ESA

Brand:: Maxim Integrated Products - Maxim | Pack: | D/C: 11+

Availability:: Supply Ability: 50000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Chan's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-18

From Other Seller

Part Number:MAX3485ESA
US $0.25 - 0.50
MAX3485ESA+T

US $0.59 - 1.55 / Piece
(0) Remove
Quantity:

piece

Product Summary

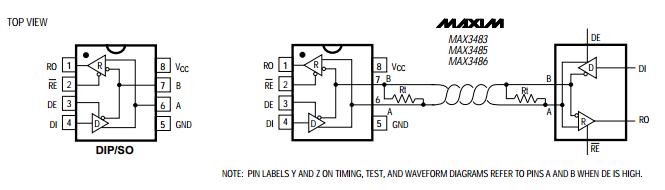

The MAX3485ESA is a 3.3V, low-power transceiver for RS-485 and RS-422 communication. Each part contains one driver and one receiver. The MAX3485ESA transmits at up to 10Mbps. Applications include Low-Power RS-485/RS-422 Transceivers, Telecommunications, Transceivers for EMI-Sensitive Applications and Industrial-Control Local Area Networks.

Parametrics

MAX3485ESA absolute maximum ratings: (1)Supply Voltage (VCC): 7V; (2)Control Input Voltage (RE, DE): -0.3V to 7V; (3)Driver Input Voltage (DI): -0.3V to 7V; (4)Driver Output Voltage (A, B, Y, Z): -7.5V to 12.5V; (5)Receiver Input Voltage (A, B): -7.5V to 12.5V; (6)Receiver Output Voltage (RO): -0.3V to (VCC + 0.3V); (7)Storage Temperature Range: -65℃ to +160℃; (8)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX3485ESA features: (1)Operate from a Single 3.3V Supply—No Charge Pump; (2)Interoperable with +5V Logic; (3)8ns Max Skew; (4)2nA Low-Current Shutdown Mode; (5)-7V to +12V Common-Mode Input Voltage Range; (6)Allows up to 32 Transceivers on the Bus; (7)Full-Duplex and Half-Duplex Versions Available; (8)Industry Standard 75176 Pinout; (9)Current-Limiting and Thermal Shutdown for Driver Overload Protection.
