MAX489ECSD

low-power transceiver, ±15kV, 12V, 250kbps, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.35~0.70 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	0.70 / Piece
51 ~ 500 :	0.55 / Piece
501 ~ 5000 :	0.35 / Piece

PartNumber:: MAX489ECSD

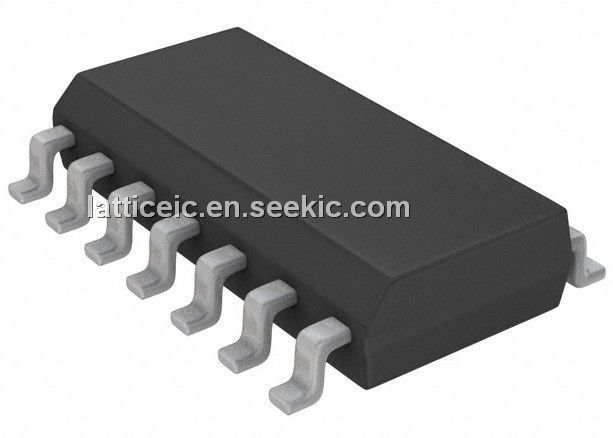

Brand:: Maxim Integrated Products - Maxim | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 50000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Chan's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-11

From Other Seller

Part Number:MAX489ECSD
US $0.35 - 0.70
Quantity:

piece

Product Summary

The MAX489ECSD is a low-power transceiver for RS-485 and RS-422 communications in harsh environments. Each driver output and receiver input is protected against ±15kV electrostatic discharge (ESD) shocks, without latchup. These parts contain one driver and one receiver. The MAX489ECSD features reduced slewrate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, thus allowing error-free data transmission up to 250kbps. Applications include Low-Power RS-485 Transceivers, Low-Power RS-422 Transceivers, Level Translators, Transceivers for EMI-Sensitive Applications and Industrial-Control Local Area Networks.

Parametrics

MAX489ECSD absolute maximum ratings: (1)Supply Voltage (VCC): 12V; (2)Driver Input Voltage (DI): -0.5V to (VCC + 0.5V); (3)Driver Output Voltage (Y, Z; A, B): -8V to +12.5V; (4)Receiver Input Voltage (A, B): -8V to +12.5V; (5)Receiver Output Voltage (RO): -0.5V to (VCC + 0.5V); (6)Storage Temperature Range: -65℃ to +160℃; (7)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX489ECSD features: (1)ESD Protection: ±15kV—Human Body Mode; (2)Slew-Rate Limited for Error-Free Data Transmission; (3)Low Quiescent Current; (4)-7V to +12V Common-Mode Input Voltage Range; (5)Three-State Outputs; (6)Full-Duplex and Half-Duplex Versions Available.
