Product Summary

The MAX706EPA+ is a microprocessor (μP) supervisory circuit which reduces the complexity and number of components required to monitor power-supply and battery functions in µP systems. These devices significantly improve system reliability and accuracy compared to separate ICs or discrete components. Applications include Computers, Controllers, Intelligent Instruments, Automotive Systems and Critical μP power Monitoring.

Parametrics

MAX706EPA+ absolute maximum ratings: (1)Terminal Voltage (with respect to GND) VCC: -0.3V to 6.0V; (2)Terminal Voltage All Other Inputs (Note 1): -0.3V to (VCC + 0.3V); (3)Input Current VCC: 20mA; (4)Input Current GND: 20mA; (5)Input Current Output Current (all outputs): 20mA; (6)Continuous Power Dissipation: 727mW; (7)Storage Temperature Range: -65℃ to +160℃; (8)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX706EPA+ features: (1)μMAX Package: Smallest 8-Pin SO; (2)Guaranteed RESET Valid at VCC = 1V; (3)Precision 4.40V Supply-Voltage Monitor; (4)200ms Reset Pulse Width; (5)Debounced TTL/CMOS-Compatible Manual-Reset Input; (6)Voltage Monitor for Power-Fail or Low-Battery Warning.

Diagrams

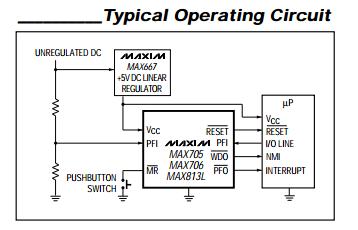

MAX706EPA+ Typical Operating Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

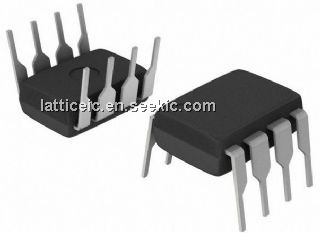

MAX706EPA+
MAX706EPA+
Maxim Integrated Products
Supervisory Circuits Single uPower Supervisor
Data Sheet
0-1: $4.88
1-25: $3.28
25-50: $2.38
50-100: $2.35
