Product Summary
The MAX813LCPA+ is a microprocessor (μP) supervisory circuit which reduces the complexity and number of components required to monitor power-supply and battery functions in μP systems. These devices significantly improve system reliability and accuracy compared to separate ICs or discrete components. Applications include Computers, Controllers, Intelligent Instruments, Automotive Systems and Critical µP Power Monitoring.
Parametrics
MAX813LCPA+ absolute maximum ratings: (1)Terminal Voltage-VCC: -0.3V to 6.0V; (2)Terminal Voltage-All Other Inputs (Note 1): -0.3V to (VCC + 0.3V); (3)Output Current (all outputs): 20mA; (4)Continuous Power Dissipation: 727mW; (5)Operating Temperature Ranges: 0℃ to +70℃; (6)Storage Temperature Range: -65℃ to +160℃; (7)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX813LCPA+ features: (1)μMAX Package: Smallest 8-Pin SO; (2)Guaranteed RESET Valid at VCC = 1V; (3)200ms Reset Pulse Width; (4)Debounced TTL/CMOS-Compatible Manual-Reset Input; (5)Active-High Reset Output; (6)Voltage Monitor for Power-Fail or Low-Battery Warning.

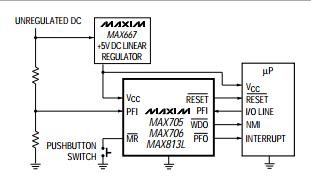

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MAX813LCPA+ |
Maxim Integrated Products |
Supervisory Circuits uPower Supervisor |
Data Sheet |
|
|
|||||||||||||
