Product Summary

The MAX813LEPA+ is a microprocessor (μP) supervisory circuit which reduces the complexity and number of components required to monitor power-supply and battery functions in μP systems. The MAX813LEPA+ significantly improves system reliability and accuracy compared to separate ICs or discrete components. Applications include Computers, Controllers, Intelligent Instruments, Automotive Systems and Critical μP Power Monitoring.

Parametrics

MAX813LEPA+ absolute maximum ratings: (1)VCC: -0.3V to 6.0V; (2)All Other Inputs (Note 1): -0.3V to (VCC + 0.3V); (3)VCC: 20mA; (4)GND: 20mA; (5)Output Current (all outputs): 20mA; (6)Storage Temperature Range: -65℃ to +160℃; (7)Lead Temperature (soldering, 10sec): +300℃; (8)Operating Temperature Ranges: -40℃ to +85℃.

Features

MAX813LEPA+ features: (1)μMAX package: smallest 8-pin SO; (2)precision 4.65V supply-voltage monitor; (3)200ms reset time delay; (4)debounced TTL/CMOS-compatible manual-reset input; (5)Active-High Reset Output; (6)Voltage Monitor for Power-Fail or Low-Battery Warning.

Diagrams

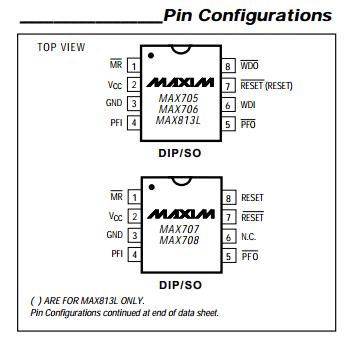

MAX813LEPA+ Pin Configurations
