Product Summary
The MSM80C85AHRS is a complete 8-bit parallel central processor implemented in silicon gate C-MOS technology and compatible with MSM80C85A. It is designed with higher processing speed (max.5 MHz) and lower power consumption compared with MSM80C85AHRS and power down mode is provided, thereby offering a high level of system integration.
Parametrics
MSM80C85AHRS absolute maximum ratings: (1)Power Supply Voltage, VCC: –0.5 to 7 V; (2)Input Voltage VIN: –0.5 to VCC +0.5 V; (3)Output Voltage VOUT: –0.5 to VCC +0.5 V; (4)Storage Temperature TSTG: -55 to 150℃; (5)Power Dissipation PD: 1.0W.
Features
MSM80C85AHRS features: (1)Power down mode (HALT-HOLD); (2)Low Power Dissipation: 50mW(Typ); (3)Single + 3 to + 6 V Power Supply; (4)–40 to + 85℃, Operating Temperature; (5)Compatible with MSM80C85A; (6)0.8 ms instruction Cycle (VCC = 5V); (7)On-Chip Clock Generator (with External Crystal); (8)On-Chip System Controller; Advanced Cycle Status Information Available for Large System Control; (9)Bug operation in MSM80C85AH is fixed; (10)Four Vectored interrupt (One is non-maskable) Plus the 8080A-compatible interrupt.; (11)Serial, In/Serial Out Port; (12)Decimal, Binary and Double Precision Arithmetic; (13)Addressing Capability to 64K Bytes of Memory; (14)TTL Compatible; (15)40-pin Plastic DIP.

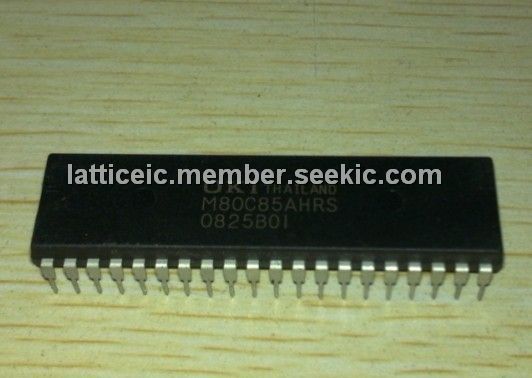

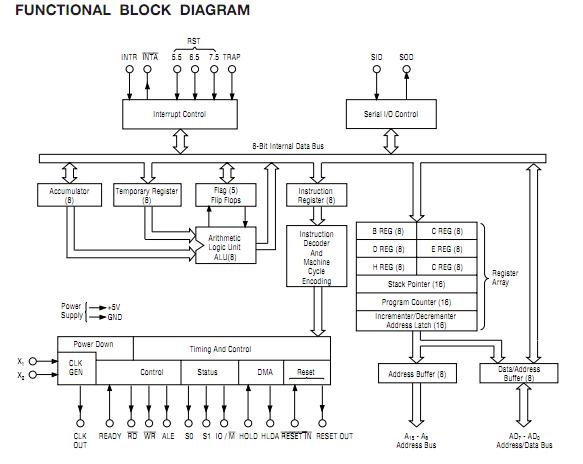

Diagrams
