Product Summary

The SI4425BDY-T1-E3 is a P-Channel 30-V (D-S) MOSFET.

Parametrics

SI4425BDY-T1-E3 absolue maximum ratings: (1)Drain-Source Voltage VDS: -30V; (2)Gate-Source Voltage VGS: ±20V; (3)Continuous Drain Current (TJ = 150℃): -11.4 to -8.8A; (4)Pulsed Drain Current IDM: -50; (5)continuous Source Current (Diode Conduction): 2.5W; (6)Operating Junction and Storage Temperature Range TJ, Tstg: -55 to 150 ℃.

Features

SI4425BDY-T1-E3 features: (1)TrenchFET Power MOSFET; (2)Advanced High Cell Density Process.

Diagrams

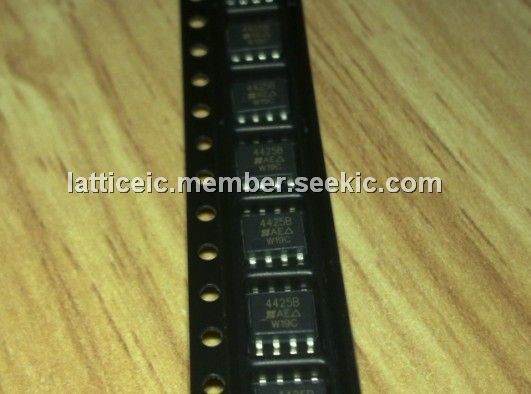

SI4425BDY-T1-E3 P-Channel MOSFET

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SI4425BDY-T1-E3
SI4425BDY-T1-E3
Vishay/Siliconix
MOSFET 30V 11A 2.5W
Data Sheet
0-1: $1.33
1-25: $1.02
25-50: $0.97
50-100: $0.92
