Product Summary

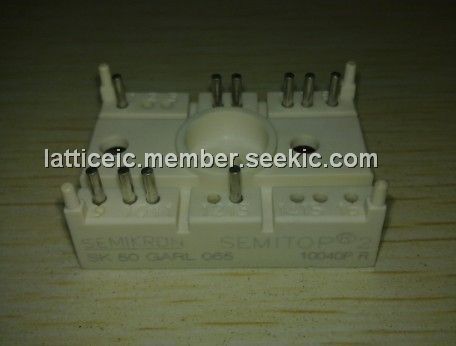

The SK50GARL065 is an IGBT Module. The applications of the SK50GARL065 include switching, inverter, switched mode power supplies, UPS.
Parametrics
SK50GARL065 absolute maximum ratings: (1)VCES: 600V; (2)VGES: ±20V; (3)IC: 54A; (4)ICM: 108A; (5)TJ: -40 to 150℃.
Features
SK50GARL065 features: (1)Compact design; (2)One screw mounting; (3)Heat transfer and isolation through direct copper bonded aluminium oxide ceramic DCB; (4)N-channel homogeneous silicon structure NPT-Non punch-through IGBT; (5)Low tail current with low temperature dependence; (6)Low threshold voltage.
Diagrams
