Product Summary

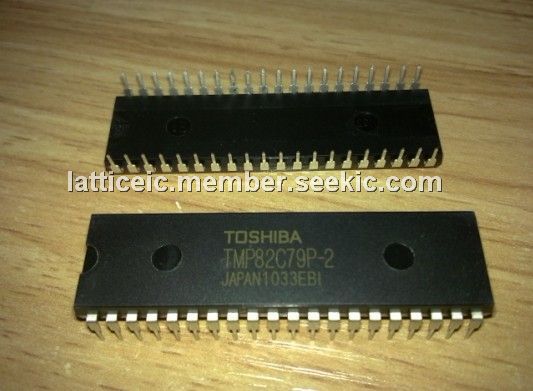

The TMP82C79P-2 is a programmable keyboard interface. The keyboard portion can provide a scanned interface up to 64 contact key matrix. Also, the keyboard portion can interface to an array of sensors or a strobed interface keyboard. Key depressions can be 2key lockout or Nkey rollover. The display portion has 16*8 bits display RAM which can be treated as dual 16*4 bits. Both right entry and left entry display formats are possible.

Parametrics

TMP82C79P-2 absolute maximum ratings: (1)VCC supply voltage: -0.5 to 7.0V; (2)Input voltage: -0.5 to VCC+0.5V; (3)Output voltage: -0.5 to VCC+0.5V; (4)Power dissipation: 250W; (5)Soldering temperatures: 260℃; (6)storage temperatures: -65 to 150℃; (7)operating temperature: -40 to 85℃.

Features

TMP82C79P-2 features: (1)Simultaneous Keyboard display operation; (2)Scanned keyboard mode; (3)strobed input entry mode; (4)Built in 8 Character FIFO or 64 bit sensor RAM; (5)programmable 2 key lockout or N key rollover with contact debounce; (6)programmable scan timing; (7)extend operating temperature: -40 to 85℃.

Diagrams

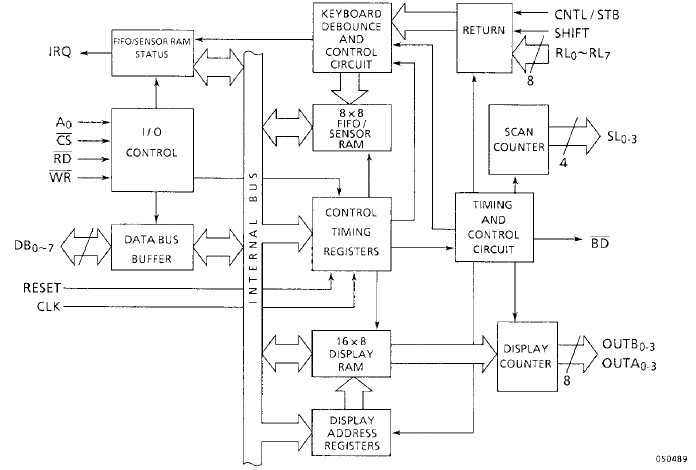

TMP82C79P-2 block diagram
