Product Summary

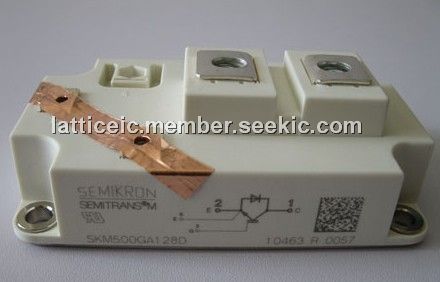

The SKM500GA128D is an IGBT module. It is suitable for AC inverter drives, UPS and electronic welders at fSW up to 20kHz.
Parametrics
SKM500GA128D absolute maximum ratings: (1)VCES: 1200V; (2)IC: 700(500)A at Tc=25(80)℃; (3)ICRM: 1400(1000)A at Tc=25(80)℃, tp=1ms; (4)VGES: ±20V; (5)Tvj, (Tstg): -40 to 150(125)℃; (6)Visol: 4000V.
Features
SKM500GA128D features: (1)homogeneous Si; (2)SPT=soft-punch-through technology; (3)VCEsat with positive temperature coefficient; (4)high short circuit capability, self limiting to 6IC.

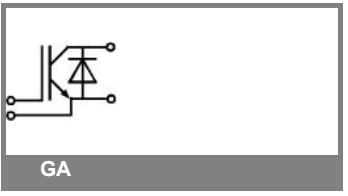

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SKM500GA128D |
Other |
|
Data Sheet |
Negotiable |
|
||||
