Product Summary
The SP202EEN is a line driver and receiver pair that meets the specifications of RS-232 and V.28 serial protocols with enhanced ESD performance. The ESD tolerance has been improved on the devices to over ±15KV for both Human Body Model and IEC1000-4-2 Air Discharge Method. As with the initial versions, the SP202EEN features at least 120Kbps data rate under load, 0.1µF charge pump capacitors, and overall ruggedness for commercial applications
Parametrics
SP202EEN absolute maximum ratings: (1)Vcc: +6V; (2)V+: (Vcc-0.3V) to +11.0V; (3)V-: -11.0V; (4)TIN: -0.3 to (Vcc +0.3V); (5)RIN: ±15V.
Features
SP202EEN features: (1)Operates from Single +5V Power Supply; (2)Meets All RS-232D and ITU V.28 Specifications; (3)Operates with 0.1μF to 10μF Capacitors; (4)High Data Rate – 120Kbps Under Load; (5)Low Power Shutdown ≤1μA (Typical); (6)3-State TTL/CMOS Receiver Outputs; (7)Low Power CMOS – 3mA Operation; (8)Improved ESD Specifications.

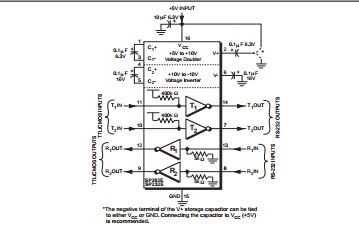

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SP202EEN-L |
Exar |
RS-232 Interface IC RS232 2Tx/2Rx temp -40C to 85C |
Data Sheet |
|
|
||||||||||||
|
SP202EEN-L/TR |
Exar |
Universal Bus Functions HIGH PERFORMANCE RS232 -40-85C |
Data Sheet |
|
|
||||||||||||
