Product Summary
The SP232A is a line driver and receiver pair that meets the specifications of RS-232 and V.28 serial protocols. The SP232ACT-L transceiver is a two driver and two receiver device that meets the EIA/TIA- 232 and V.28 serial communication protocol. The device is pin-to-pin compatible with popular industry standard pinouts. The SP232A offers 120kbps data rate, 10V/μs slew rate and a regulated charge pump that operates from a single 5V supply. The proprietary on-board charge pump generates a regulated output of +/-6.5V for RS-232 compliant voltage levels.
Parametrics
SP232ACT-L absolute maximum ratings: (1)Supply Voltage (VCC): + 6V; (2)Input Voltages-Tin: -0.3V to (Vcc + 0.3V); (3)Input oltages-Rin: +/-15V; (4)Output Voltages-Tout: (V+, +0.3V) to (V-, -0.3V; (5)Output Voltages-Rout: -0.3V to (Vcc + 0.3V); (6)Storage Temperature: -65℃ to +150℃; (7)Lead Temperature (soldering, 10s): +300℃.
Features
SP232ACT-L features: (1)Operates from a Single +5V Power Supply; (2)Meets all RS-232F and ITU V.28 Specifications; (3)Operates with 0.1μF Ceramic Capacitors; (4)High Data rate- 120kbps under load; (5)Low power CMOS Operation; (6)+/-2kV Human Body Model ESD Protection; (7)Lead Free packaging available.

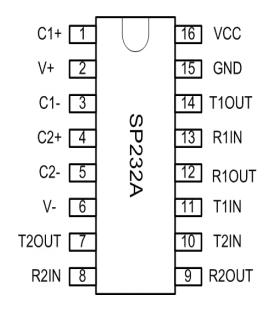

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SP232ACT-L |
Exar |
RS-232 Interface IC RS232 ESD 2KV temp 0C to 70C |
Data Sheet |
|
|
|||||||||||||
SP232ACT-L/TR |
Exar |
RS-232 Interface IC 5V SNGL SUPPLY RS-232 0-70C |
Data Sheet |
|
|
