Product Summary

The SP485REN is a 1/10th Unit Load RS-485 transceiver which is pin-to-pin equivalent with our existing SP485 product and contain enhancements such as higher ESD tolerance and high receiver input impedance. The higher receiver input impedance allows for connecting over 400 transceivers on a single transmission line without degrading the RS-485 driver signal. Each device is packaged in an 8-pin plastic DIP or 8-pin narrow SOIC package.

Parametrics

SP485REN absolute maximum ratings: (1)VCC: +7V; (2)Storage Temperature: -65℃ to +150℃; (3)Power Dissipation-8-pin Plastic DIP: 1000mW; (4)Power Dissipation-8-pin Plastic N-SOIC: 1000mW; (5)Package Derating-8-pin Plastic DIP: 62℃/W; (6)Package Derating-8-pin Plastic N-SOIC: 62℃/W.

Features

SP485REN features: (1)Allows Over 400 Transceivers On A Transmission Line (1/10th Unit Load); (2)High Impedance on Receiver Inputs; (3)Half-Duplex Configuration Consistent With Industry Standard Pinout; (4)–7V to +12V Common Mode Input Voltage Range; (5)Low Power Consumption (250mW); (6)Separate Driver and Receiver Enable.

Diagrams

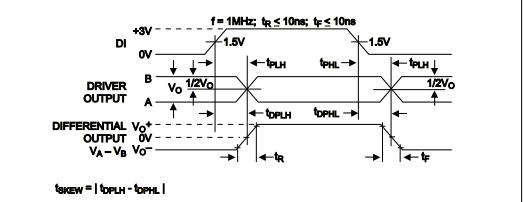

SP485REN SWITCHING WAVEFORMS

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SP485REN-L
SP485REN-L
Exar
RS-485 Interface IC RS485 1000 kbps temp -40C to 85C
Data Sheet
0-1: $0.74
1-25: $0.56
25-100: $0.47
100-250: $0.40
SP485REN-L/TR
SP485REN-L/TR
Exar
RS-485 Interface IC High-Fanout RS-485
Data Sheet
0-1: $0.74
1-25: $0.56
25-100: $0.47
100-250: $0.40
