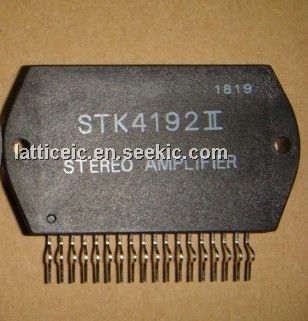

Product Summary

The STK4192II is AF Power Amplifier with 50W Split Power Supply.

Parametrics

STK4192II absolute maximum ratings: (1)Maximum supply voltage: 52.5 V; (2)Thermal resistance: 1.8℃/W; (3)Junction temperature: 150℃; (4)Operating substrate temperature: 125℃; (5)Storage temperature: -30 to +125℃; (6)Available time for load short-circuit: 2 s.

Features

STK4192II features: (1)in-compatible in the output range of 6W to 50W and enable easy design; (2)Small-sized package whose pin assignment is the same as that of the STK4101II series; (3)Built-in muting circuit to cut off various kinds of pop noise; (4)Greatly reduced heat sink due to substrate temperature 125℃ guaranteed; (5)Excellent cost performance.

Diagrams

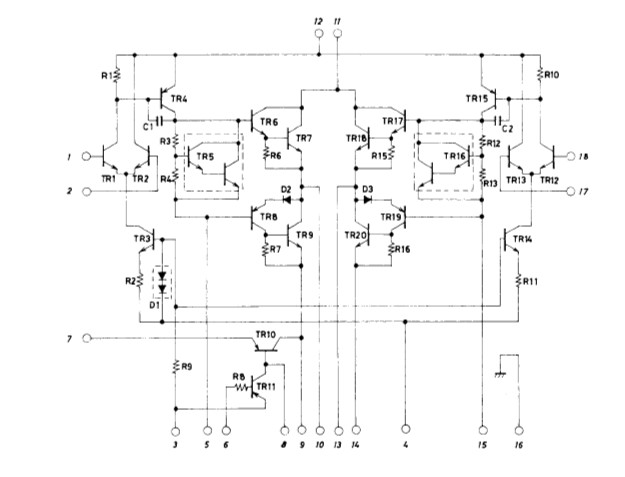

STK4192II Equivalent Circuit
