Product Summary

The STK4392 is an AF Power Amplifier.

Parametrics

STK4392 absolute maximum ratings: (1)maximum supply voltage: 56V; (2)themal resistance: 5℃/W; (3)juction temperature: 150℃ ; (4)operating substrate temperature: 125℃ ; (5)storage temperture: -30 to +125℃ ; (6)availabe time for load short-circuit: 2s.

Features

STK4392 features: (1)small and slim package with 31mm height; (2)capable of guaranteeing substrate temperature 125℃ thereby reducing heat sink; (3)excellent cost performance.

Diagrams

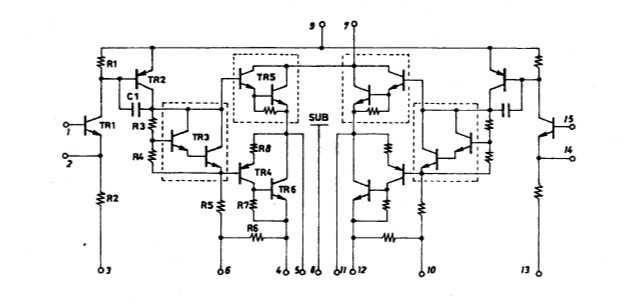

STK4392 equivalent circuit
