Product Summary

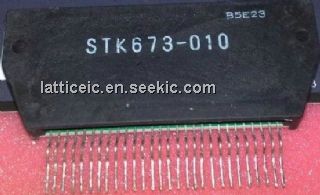

The STK673-010 is a 3-Phase Stepping Motor Driver with built-in microstep controller having a bipolar constant current PWM system, in which a power MOSFET is employed at an output stage. The STK673-010 includes a 3-phase distributed controller for a 3-phase stepping motor to realize a simple configuration of the motor driver circuit. Applications of the STK673-010 include transmission and reception in a facsimile, optical system in a copying machine and industrial machines or products.

Parametrics

STK673-010 absolute maximum ratings: (1)maximum supply voltage1: 36V; (2)maximum supply voltage2: -0.3V to +7.0V; (3)input voltage: -0.3V to +7.0V; (4)phase output current: 4.0A; (5)operating substrate temperature: 105℃; (6)junction temperature: 150℃; (7)storage temperature: -40 to +125℃.

Features

STK673-010 features: (1)number of motor revolution can be controlled by the frequency of external clock input; (2)phase is maintained even when the excitation mode is changed; (3)schmitt inputs with built-in pull-up resistor; (4)a built-in current detection resistor.

Diagrams

STK673-010 sample application circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
STK673-010-E
STK673-010-E
ON Semiconductor
Motor / Motion / Ignition Controllers & Drivers 3-PHASE MOTOR DRIVER
Data Sheet
0-1: $17.08
1-25: $15.71
25-100: $14.60
100-250: $13.39
