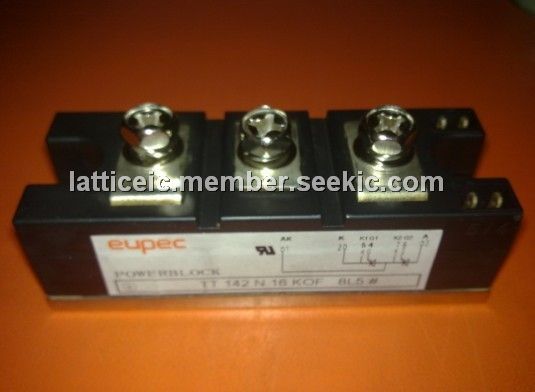

TT142N16KOF

TT142N16KOF, Infineon, Phase Control Thyristor Module, 4100A, 150A/μs, 1600V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $25.00~35.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $25.00~35.00

PartNumber:: TT142N16KOF

Brand:: Infineon Technologies AG - Infineon | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Chan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-23

From Other Seller

Part Number:TT142N16KOF
US $25.00 - 35.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TT142N16KOF is a Phase Control Thyristor Module.

Parametrics

TT142N16KOF absolute maximum ratings: (1) repetitive peak forward off-state and reverse voltages: 1600V; (2)non-repetitive peak forward off-state voltage: 1600V; (3) non-repetitive peak reverse voltage: 1700V; (4) maximum RMS on-state current: 230A; (5) average on-state current: 142A; (6) surge current: 4100A; (7) critical rate of rise of on state current: 150A/μs; (8) critical rate of rise of off-state voltage: 1000V/μs.

Features

TT142N16KOF Characteristics: (1) on-state voltage: max. 1.56V; (2) threshold voltage: 0.9V; (3) threshold voltage: 1.1mΩ; (4) gate trigger current: max. 150mA; (5)gate trigger voltage: max. 2V; (6) gate non-trigger voltage: max. 0.25V; (7) holding current: max. 200mA; (8) latching current: max. 800mA; (9) gate controlled delay time: max. 3μs.
