Product Summary
The ADM1232ANZ is a Microprocessor Supervisory Circuit. It is a superior, pin-compatible upgrade for the MAX1232 and the DS1232LP and DS1232. The Analog Device ADM1232ANZ is a microprocessor monitoring circuit that can monitor Microprocessor Supply Voltage, Whether a Microprocessor has locked-up and An External Interrupt. Applications include Microprocessor Systems, Portable Equipment, computers, Controllers, Intelligent Instruments and Automotive Systems.
Parametrics
ADM1232ANZ absolute maximum ratings: (1)VCC: +5.5 V; (2)Logic Inputs: –0.3 V to VCC + 0.3 V; (3)Storage Temperature Range: –65℃ to +150℃; (4)Lead Temperature (Soldering, 10 sec): +300℃; (5)Vapor Phase (60 sec): +215℃; (6)Infrared (15 sec): +220℃.
Features
ADM1232ANZ features: (1)Low Power Consumption; (2)Adjustable Precision Voltage Monitor with +4.5 V and +4.75 V Options; (3)No External Components.

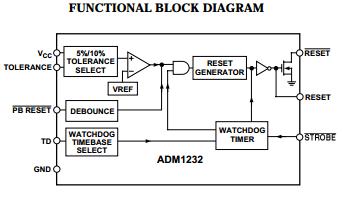

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADM1232ANZ |
|
IC SUPERVISOR FOR CPU 8DIP |
Data Sheet |
|
|
||||||||||||||||||||||
