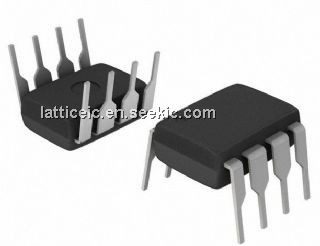

ADM485ANZ

differential line transceiver, high speed, 5 V, 15 ns, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.25~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	0.50 / Piece
51 ~ 500 :	0.40 / Piece
501 ~ 5000 :	0.25 / Piece

PartNumber:: ADM485ANZ

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 50000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Chan's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-03

From Other Seller

Part Number:ADM485ANZ
US $0.25 - 0.50
Quantity:

piece

Product Summary

The ADM485ANZ is a differential line transceiver suitable for high speed bidirectional data communication on multipoint bus transmission lines. It is designed for balanced data transmission and complies with EIA standards RS-485 and RS-422. The part contains a differential line driver and a differential line receiver. Both the driver and the receiver can be enabled independently. When disabled, the outputs are three-stated. The ADM485ANZ operates from a single 5 V power supply. Excessive power dissipation caused by bus contention or by output shorting is prevented by a thermal shutdown circuit. If during fault conditions, a significant temperature increase is detected in the internal driver circuitry, this feature forces the driver output into a high impedance state.

Parametrics

ADM485ANZ absolute maximum ratings: (1)VCC: -0.3 V to +7 V; (2)Driver Input (DI): -0.3 V to VCC + 0.3 V ; (3)Control Inputs (DE, RE): -0.3 V to VCC + 0.3 V ; (4)Receiver Inputs (A, B): -9 V to +14 V; (5)Driver Outputs (A, B): -9 V to +14 V ; (6)Receiver Output: -0.5 V to VCC + 0.5 V; (7)Lead Temperature (Soldering, 10 sec): 300℃.

Features

ADM485ANZ features: (1)Meets EIA RS-485 standard ; (2)5 Mbps data rate ; (3)Single 5 V supply ; (4)–7 V to +12 V bus common-mode range ; (5)High speed, low power BiCMOS ; (6)Thermal shutdown protection ; (7)Short-circuit protection ; (8)Driver propagation delay: 10 ns typical ; (9)Receiver propagation delay: 15 ns typical ; (10)High-Z outputs with power off.
