Product Summary

The CD4069UBM96 is an Inverter which consists of six inverter circuits and is manufactured using complementary MOS (CMOS) to achieve wide power supply operating range, low power consumption, high noise immunity, and symmetric controlled rise and fall times. This device is intended for all general purpose inverter applications. In those applications requiring larger noise immunity the MM74C14 or M74C914 Hex Schmitt Trigger is suggested.

Parametrics

CD4069UBM96 absolute maximum ratings: (1)DC Supply Voltage (VDD): -0.5V to +18 VDC; (2)Input Voltage (VIN): -0.5V to VDD +0.5 VDC; (3)Storage Temperature Range: -65 to +150℃; (4)Power Dissipation (PD)-Dual-In-Line: 700 mW; (5)Power Dissipation (PD)-Small Outline: 500 mW; (6)DC Supply Voltage (VDD): 3V to 15VDC; (7)Operating Temperature Range (TA): -55 to +125℃.

Features

CD4069UBM96 features: (1)Wide supply voltage range: 3.0V to 15V; (2)High noise immunity: 0.45 VDD typ.; (3)Low power TTL: Fan out of 2 driving 74L; (4)compatibility: or 1 driving 74LS.

Diagrams

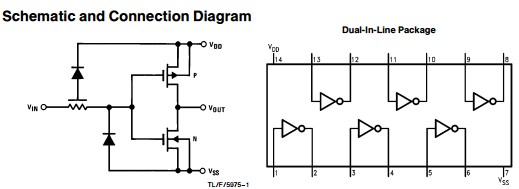

CD4069UBM96 Schematic and Connection Diagram
