Product Summary

The FF100R12KS4 is a 62mm IGBT module with the fast IGBT2 for high-frequency switching. Applications of the FF100R12KS4 are High frequency switching application, Medical applications, Motor drives.

Parametrics

FF100R12KS4 absolute maximum ratings: (1)collector emitter voltage: 1200V; (2)DC-collector current: 150A; (3)repetitive peak collector current: 200A; (4)total power dissipation: 780W; (5)gate-emitter peak voltage: 20V.

Features

FF100R12KS4 features: (1) Low switching losses; (2) unbeatable robustness; (3) Isolated base plate; (4) Copper base plate; (5) standard housing.

Diagrams

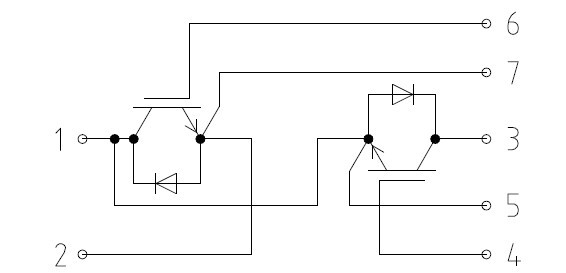

FF100R12KS4 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FF100R12KS4
FF100R12KS4
Infineon Technologies
IGBT Modules 1200V 100A DUAL
Data Sheet
0-6: $68.26
6-10: $61.43
