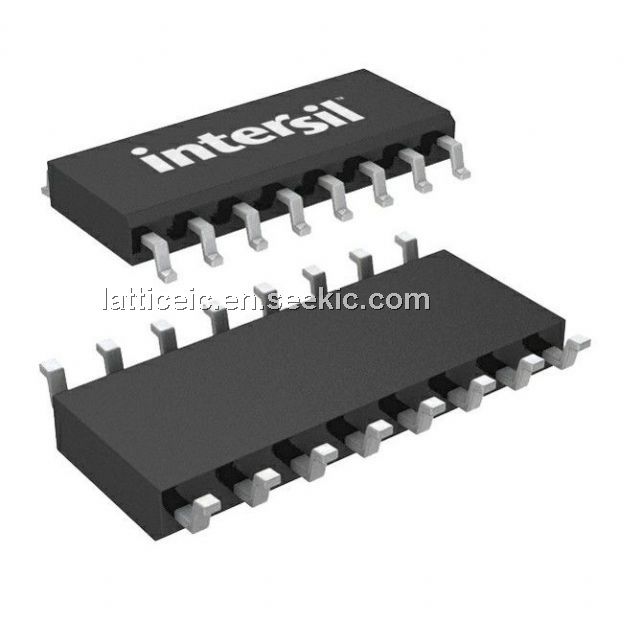

HIN202EIBNZ-T

Transceiver, High Speed, 10V, 15kV, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.25 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	0.25 / Piece
51 ~ 500 :	0.22 / Piece
501 ~ 5000 :	0.20 / Piece

PartNumber:: HIN202EIBNZ-T

Brand:: Intersil Corporation - Intersil | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 500000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Chan's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-19

From Other Seller

Part Number:HIN202EIBNZ-T
US $0.20 - 0.25
Quantity:

piece

Product Summary

The HIN202EIBNZ-T is a transmitter/receiver interface circuit which meets all ElA high-speed RS-232E and V.28 speciﬁcations, and are particularly suited for those applications where ±12V is not available. A redesigned transmitter circuit improves data rate and slew rate, which makes this suitable for ISDN and high speed modems. The transmitter outputs and receiver inputs are protected to ±15kV ESD (Electrostatic Discharge). The HIN202EIBNZ-T requires a single +5V power supply and feature onboard charge pump voltage converters which generate +10V and -10V supplies from the 5V supply.

Parametrics

HIN202EIBNZ-T absolute maximum ratings: (1)VCC to Ground: (GND -0.3V) < VCC < 6V; (2)V+ to Ground: (VCC -0.3V) < V+ < 12V; (3)V- to Ground: -12V < V- < (GND +0.3V); (4)Output Voltages-TOUT: (V- -0.3V) < VTXOUT < (V+ +0.3V); (5)Output Voltages-ROUT: (GND -0.3V) < VRXOUT < (V+ +0.3V).

Features

HIN202EIBNZ-T features: (1)High Speed ISDN Compatible; (2)ESD Protection for RS-232 I/O Pins to ±15kV (IEC1000); (3)Meets All RS-232E and V.28 Specifications; (4)Two Receivers Active in Shutdown Mode (HIN213E); (5)Requires Only Single +5V Power Supply; (6)Onboard Voltage Doubler/Inverter; (7)Low Power Consumption (Typ); (8)Low Power Shutdown Function (Typ); (9)Three-State TTL/CMOS Receiver Outputs.
