Product Summary
The LM339N is a Quad Single Supply Comparator. It is designed for use in level detection, low–level sensing and memory applications in consumer automotive and industrial electronic applications.
Parametrics
LM339N absolute maximum ratings: (1)Power Supply Voltage: +36 or ±18V; (2)Input Differential Voltage Range: 36V; (3)Input Common Mode Voltage Range: –0.3 to VCCV; (4)Junction Temperature: 150℃; (5)Storage Temperature Range T: -60 to 150℃.
Features
LM339N features: (1)Single or Split Supply Operation; (2)Low Input Bias Current: 25 nA (Typ); (3)Low Input Offset Current: ±5.0 nA (Typ); (4)Low Input Offset Voltage: ±1.0 mV (Typ) LM139A Series; (5)Input Common Mode Voltage Range to Gnd; (6)Low Output Saturation Voltage: 130 mV (Typ) @ 4.0 mA; (7)TTL and CMOS Compatible; (8)ESD Clamps on the Inputs Increase Reliability without Affecting DeviceOperation.

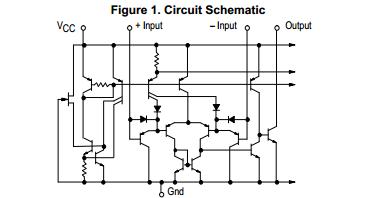

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

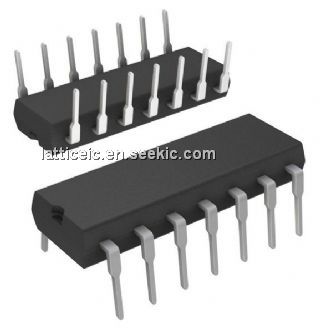

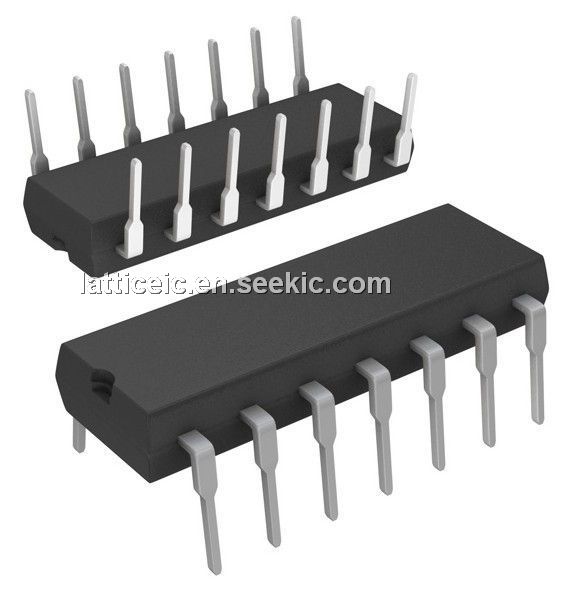

LM339N |
Fairchild Semiconductor |
Comparator ICs Quad Comparator |
Data Sheet |
|
|
|||||||||||||
LM339N/NOPB |
National Semiconductor (TI) |
Comparator ICs LOW PWR LOW OFFSET VLTG QUAD COMPARATOR |
Data Sheet |
|
|
|||||||||||||
LM339N/PB |
National Semiconductor (TI) |
Comparator ICs QUAD COMPARATOR |
Data Sheet |
|
|
|||||||||||||
LM339N_Q |
Fairchild Semiconductor |
Comparator ICs Quad Comparator |
Data Sheet |
Negotiable |
|
|||||||||||||
LM339NE3 |
Texas Instruments |
Comparator ICs Quad Diff Comparator |
Data Sheet |
|
|
|||||||||||||
LM339NE4 |
Texas Instruments |
Comparator ICs Quad Differential Comparator |
Data Sheet |
|
|
|||||||||||||
LM339NG |
ON Semiconductor |
Comparator ICs 3-36V Qud Comparator Commercial Temp |
Data Sheet |
|
|
|||||||||||||
LM339NSRG4 |
Texas Instruments |
Comparator ICs Quad Differential Comparator |
Data Sheet |
|
|
