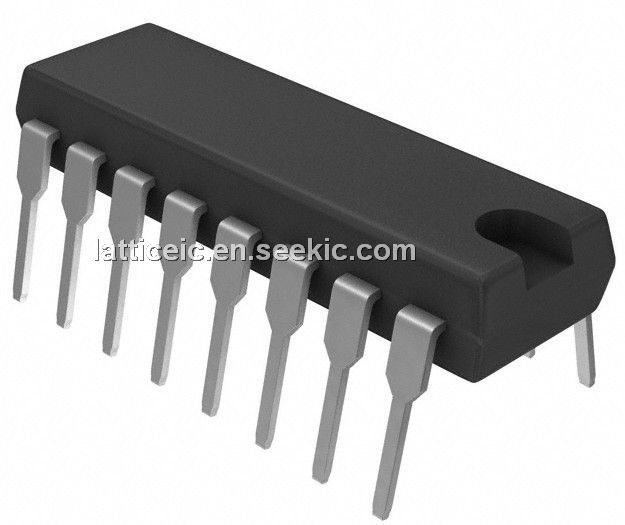

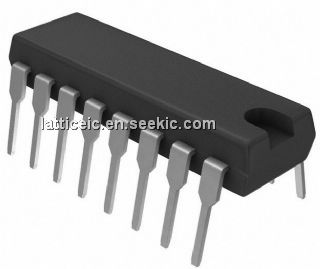

Product Summary
The MAX202CPE is a transceiver for RS-232 and V.28 communication intefaces where ±12V supplies are not available. On-board charge pumps convert the +5V input the ±10V needed for RS-232 output levels. Applications include computers, laptops, palmtops, notebooks, battery-powered quipment and hand-held equipment.
Parametrics
MAX202CPE absolute maximum ratings: (1)VCC: -0.3V to +6V; (2)V+: (VCC -0.3V) to +14V; (3)V-: +0.3V to -14V; (4)Storage Temperature: -65 to +160℃; (5)Lead temperature: +300℃.
Features
MAX202CPE features: (1)0.1μF to 10μF external capacitors; (2)120kbit.sec data rate; (3)low power shutdown current; (4)designed for RS-232 and V.28 applications; (5)three-state TTL/CMOS receiver outputs.

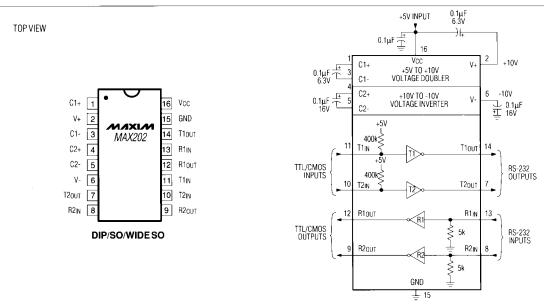

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MAX202CPE+ |
Maxim Integrated Products |
RS-232 Interface IC 5V RS-232 Tcvr w/0.1uF External Cap |
Data Sheet |
|
|
|||||||||||||
