Product Summary

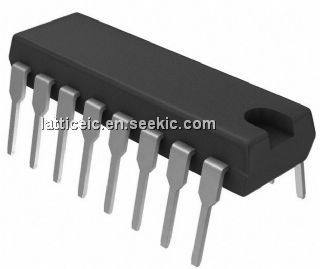

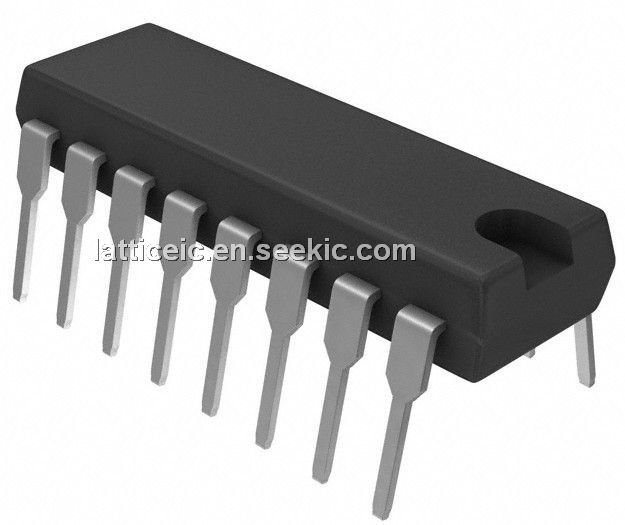

The MAX202IN is a line driver. The device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 5-V supply. The device operates at data signaling rates up to 120 kbit/s and a maximum of 30-V/µs driver output slew rate.
Parametrics
MAX202IN absolute maximum ratings: (1)Supply voltage range, VCC (see Note 1):=0.3 V to 6 V; (2)Positive charge pump voltage range, V+ (see Note 1): VCC-0.3 V to 14 V; (3)Negative charge pump voltage range, V- (see Note 1): -14 V to 0.3 V; (4)Input voltage range Drivers: -0.3 V to V+ + 0.3 V ; (5)Input voltage range Receivers: ±30 V; (6)Operating virtual junction temperature: 150℃; (7)Storage temperature range: -65 to 150℃.
Features
MAX202IN features: (1)ESD Protection for RS-232 Bus Pins- ±15-kV Human-Body Mode; (2)Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards; (3)Operates at 5-V VCC Supply; (4)Operates Up To 120 kbit/s; (5)External Capacitors: 4 × 0.1μF; (6)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II.

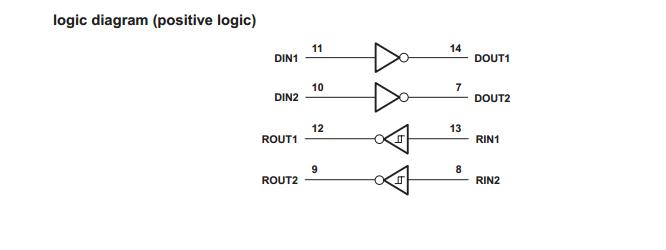

Diagrams
