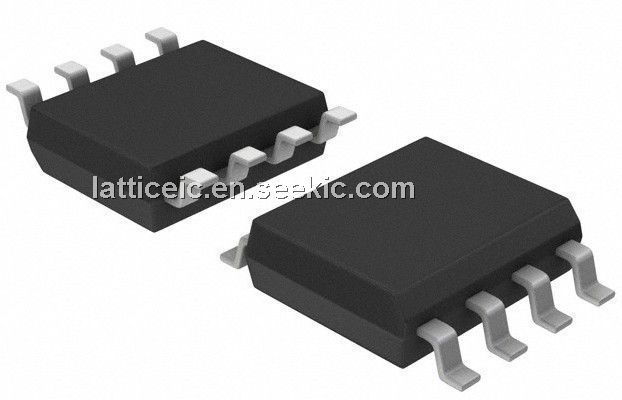

MAX3082ESA

transceiver, high-speed, 1mA, +7V, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.40~0.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	0.80 / Piece
51 ~ 500 :	0.60 / Piece
501 ~ 5000 :	0.40 / Piece

PartNumber:: MAX3082ESA

Brand:: Maxim Integrated Products - Maxim | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 50000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Chan's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-04

From Other Seller

Part Number:MAX3082ESA
US $0.40 - 0.80
IC MAX3082ESA

US $0.40 - 0.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

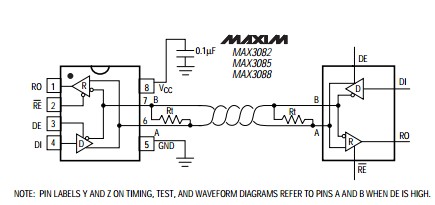

The MAX3082ESA is a high-speed transceiver for RS-485/RS-422 communication contain one driver and one receiver. It features fail-safe circuitry, which guarantees a logic-high receiver output when the receiver inputs are open or shorted. This means that the receiver output will be a logic high if all transmitters on a terminated bus are disabled (high impedance). The MAX3082ESA features reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, allowing error-free data transmission up to 115kbps. Applications include RS-422/RS-485 Communications, Level Translators, Transceivers for EMI-Sensitive Applications and Industrial-Control Local Area Networks.

Parametrics

MAX3082ESA absolute maximum ratings: (1)Supply Voltage (VCC): +7V; (2)Control Input Voltage (RE, DE): -0.3V to (VCC + 0.3V); (3)Special Input Voltage (H/F, SRL, TXP, RXP): -0.3V to (VCC + 0.3V); (4)Driver Input Voltage (DI): -0.3V to (VCC + 0.3V); (5)Driver Output Voltage (A, B, Y, Z): ±13V; (6)Receiver Input Voltage (A, B): ±13V; (7)Receiver Input Voltage, Full Duplex (A, B): ±25V; (8)Receiver Output Voltage (RO): -0.3V to (VCC + 0.3V); (9)Storage Temperature Range: -65℃ to +150℃; (10)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX3082ESA features: (1)True Fail-Safe Receiver While Maintaining EIA/TIA-485 Compatibility; (2)Enhanced Slew-Rate Limiting Facilitates Error-Free Data Transmission; (3)1mA Low-Current Shutdown Mode; (4)Allow Up to 256 Transceivers on the Bus.
