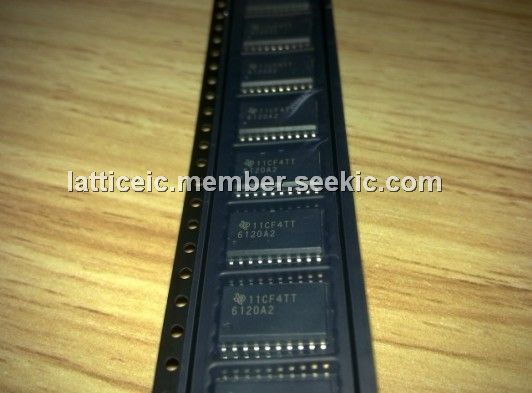

Product Summary

The TPA6120A2DWPR is a high fidelity audio amplifier built on a current-feedback architecture. This high bandwidth, extremely low noise device is ideal for high performance equipment. The better than 120 dB of dynamic range exceeds the capabilities of the human ear, ensuring that nothing audible is lost due to the amplifier. The solid design and performance of the TPA6120A2DWPR ensures that music, not the amplifier, is heard.

Parametrics

TPA6120A2DWPR absolute maximum ratings: (1)Supply voltage: V CC+ to V CC-: 33 V; (2)Input voltage, V I(2): ± V CC; (3)Differential input voltage, V ID: 6 V; (4)Minimum load impedance: 8 Ω; (5)Continuous total power dissipation: See Dissipation Rating Table; (6)Operating free – air temperature range, T A: - 40 to 85℃; (7)Operating junction temperature range, T J(3): - 40 to 150℃; (8)Storage temperature range, T stg: - 40 to 125℃; (9)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 235℃.

Features

TPA6120A2DWPR features: (1)80 mW into 600Ω From a ± 12-V Supply at 0.00014% THD + N; (2)Current-Feedback Architecture; (3)Greater than 120 dB of Dynamic Range; (4)SNR of 120 dB; (5)Output Voltage Noise of 5 μ Vrms at Gain = 2 V/V; (6)Power Supply Range: ± 5 V to ± 15 V; (7)1300 V/ μ s Slew Rate; (8)Differential Inputs; (9)Independent Power Supplies for Low Crosstalk; (10)Short Circuit and Thermal Protection.

Diagrams

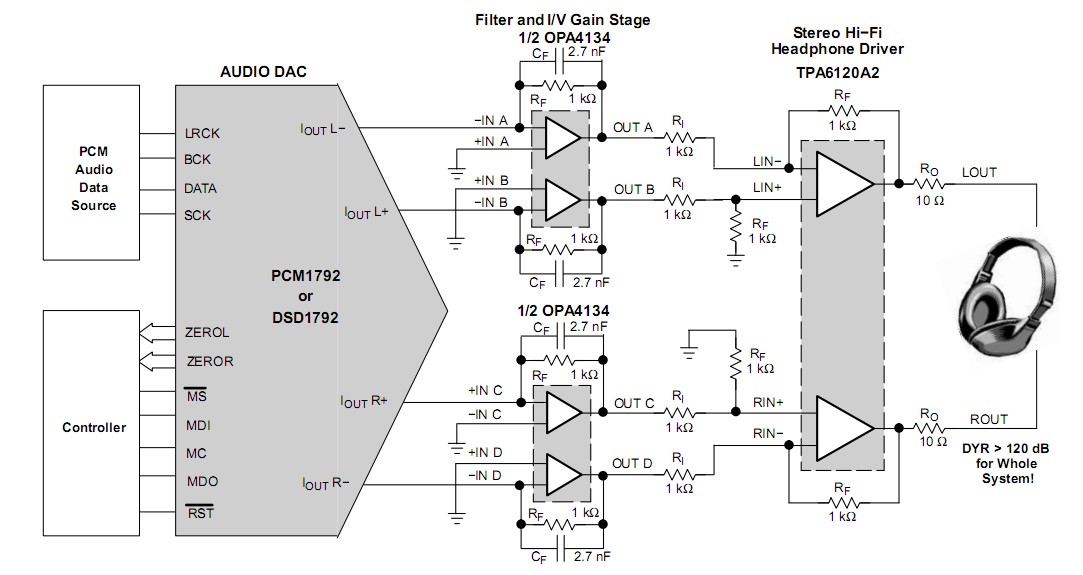

TPA6120A2DWPR block diagram
