MAX483ECSA

low-power transceiver, 15kV, 12.5V, -0.5V, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	0.40 / Piece
51 ~ 500 :	0.30 / Piece
501 ~ 5000 :	0.20 / Piece

PartNumber:: MAX483ECSA

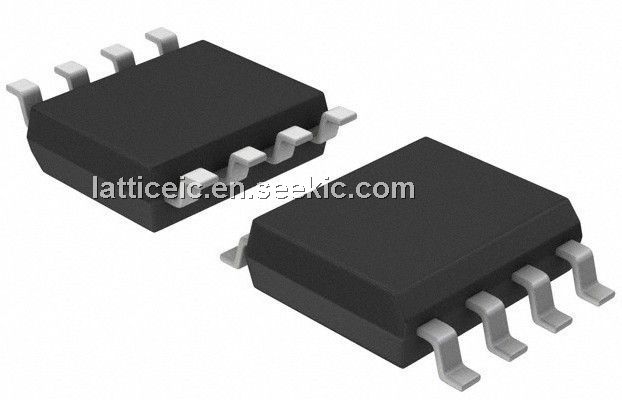

Brand:: Maxim Integrated Products - Maxim | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 50000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Chan's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-04

From Other Seller

Part Number:MAX483ECSA
US $0.20 - 0.40
MAX483ECSA+T

US $1.80 - 4.02 / Piece
(0) Remove
Quantity:

piece

Product Summary

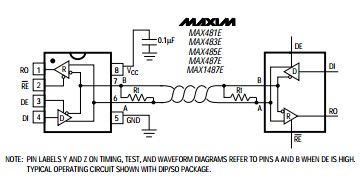

The MAX483ECSA is a low-power transceiver for RS-485 and RS-422 communications in harsh environments. Each driver output and receiver input is protected against ±15kV electrostatic discharge (ESD) shocks, without latchup. These parts contain one driver and one receiver. The MAX483ECSA features reduced slewrate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, thus allowing error-free data transmission up to 250kbps. Applications include Low-Power RS-485 Transceivers, Low-Power RS-422 Transceivers, Level Translators, Transceivers for EMI-Sensitive Applications and Industrial-Control Local Area Networks.

Parametrics

MAX483ECSA absolute maximum ratings: (1)Supply Voltage (VCC): 12V; (2)Control Input Voltage: -0.5V to (VCC + 0.5V); (3)Driver Input Voltage (DI): -0.5V to (VCC + 0.5V); (4)Driver Output Voltage (Y, Z; A, B): -8V to +12.5V; (5)Receiver Input Voltage (A, B): -8V to +12.5V; (6)Receiver Output Voltage (RO): -0.5V to (VCC + 0.5V); (7)Storage Temperature Range: -65℃ to +160℃; (8)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX483ECSA features: (1)ESD Protection: ±15kV—Human Body Model; (2)Slew-Rate Limited for Error-Free Data Transmission; (3)Low Quiescent Current; (4)-7V to +12V Common-Mode Input Voltage Range; (5)Full-Duplex and Half-Duplex Versions Available; (6)Current Limiting and Thermal Shutdown for Driver Overload Protection.
