Product Summary

The MAX706ESA+ is a microprocessor (µP) supervisory circuit which reduces the complexity and number of components required to monitor power-supply and battery functions in µP systems. These devices significantly improve system reliability and accuracy compared to separate ICs or discrete components. Applications include Computers, Controllers, Intelligent Instruments, Automotive Systems and Critical µP Power Monitoring.

Parametrics

MAX706ESA+ absolute maximum ratings: (1)Terminal Voltage (with respect to GND) VCC: -0.3V to 6.0V; (2)Terminal Voltage (with respect to GND) All Other Inputs: -0.3V to (VCC + 0.3V); (3)Input Current VCC: 20mA; (4)Input Current GND: 20mA; (5)Output Current (all outputs): 20mA; (6)Storage Temperature Range: -65℃ to +160℃; (7)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX706ESA+ features: (1)μMAX Package: Smallest 8-Pin SO; (2)Guaranteed RESET Valid at VCC = 1V; (3)Precision Supply-Voltage Monitor: 4.40V; (4)200ms Reset Pulse Width; (5)Debounced TTL/CMOS-Compatible Manual-Reset Input; (6)Independent Watchdog Timer—1.6sec Timeout; (7)Voltage Monitor for Power-Fail or Low-Battery Warning.

Diagrams

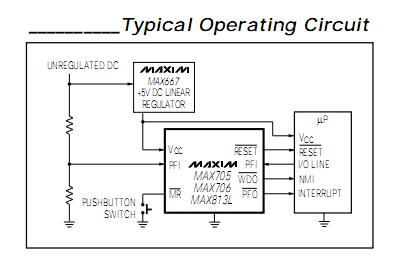

MAX706ESA+ Typical Operating Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAX706ESA+
MAX706ESA+
Maxim Integrated Products
Supervisory Circuits Single uPower Supervisor
Data Sheet
0-1: $4.88
1-25: $3.28
25-50: $2.38
50-100: $2.35
MAX706ESA+T
MAX706ESA+T
Maxim Integrated Products
Supervisory Circuits Single uPower Supervisor
Data Sheet
0-2080: $2.02
2080-2500: $2.02
