Product Summary
The MAX708CPA+ is a microprocessor (μP) supervisory circuit which reduces the complexity and number of components required to monitor power-supply and battery functions in µP systems. These devices significantly improve system reliability and accuracy compared to separate ICs or discrete components. Applications include Computers, Controllers, Intelligent Instruments, Automotive Systems and Critical μP Power Monitoring.
Parametrics
MAX708CPA+ absolute maximum ratings: (1)VCC: -0.3V to 6.0V; (2)All Other Inputs (Note 1): -0.3V to (VCC + 0.3V); (3)VCC: 20mA; (4)GND: 20mA; (5)Output Current (all outputs): 20mA; (6)Storage Temperature Range: 65℃ to +160℃; (7)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX708CPA+ features: (1)μMAX Package: Smallest 8-Pin SO; (2)Guaranteed RESET Valid at VCC = 1V; (3)200ms Reset Pulse Width; (4)Debounced TTL/CMOS-Compatible Manual-Reset Input; (5)Active-High Reset Output; (6)Voltage Monitor for Power-Fail or Low-Battery Warning.

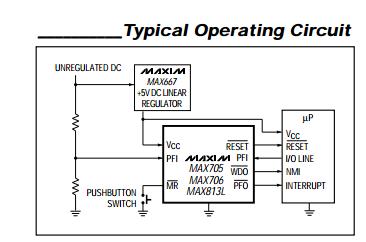

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MAX708CPA+ |
Maxim Integrated Products |
Supervisory Circuits Single uPower Supervisor |
Data Sheet |
|
|
|||||||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
MAX700 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
MAX7000 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
MAX7000A |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
MAX700C/D |
Maxim Integrated Products |
Supervisory Circuits |
Data Sheet |
Negotiable |
|
|||||||||||||
MAX700CPA |
Maxim Integrated Products |
Supervisory Circuits Integrated Circuits (ICs) |
Data Sheet |
Negotiable |
|
|||||||||||||
MAX700CPA+ |
Maxim Integrated Products |
Supervisory Circuits Power-Supply Monitor w/Reset |
Data Sheet |
|
|
