Product Summary
The MAX809REUR+T is a microprocessor (μP) supervisory circuit used to monitor the power supplies in µP and digital systems. They provide excellent circuit reliability and low cost by eliminating external components and adjustments when used with +5V, +3.3V, +3.0V, or +2.5V-powered circuits. Applications include Computers, Controllers, Intelligent Instruments, Critical μP and μC Power Monitoring, Portable/Battery-Powered Equipment and Automotive.
Parametrics
MAX809REUR+T absolute maximum ratings: (1)Input Current, VCC: 20mA; (2)Output Current, RESET, RESET: 20mA; (3)Rate of Rise, VCC: 100V/μs; (4)Operating Temperature Range: -40℃ to +105℃; (5)Storage Temperature Range: -65℃to +150℃; (6)Lead Temperature (soldering, 10s): +300℃.
Features
MAX809REUR+T features: (1)Precision Monitoring of +2.5V, +3V, +3.3V, and +5V Power-Supply Voltages; (2)Fully Specified Over Temperature; (3)140ms min Power-On Reset Pulse Width; (4)12μA Supply Current; (5)Guaranteed Reset Valid to VCC = +1V; (6)Power Supply Transient Immunity; (7)No External Components; (8)3-Pin SC70 and SOT23 Packages.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

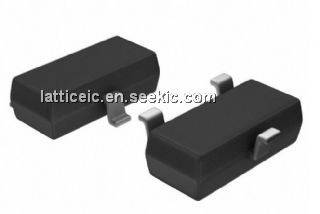

 MAX809REUR+T |
Maxim Integrated Products |
Supervisory Circuits 3-Pin MPU Supervisor |
Data Sheet |
|
|
||||||||||||
|
MAX809REUR+T10 |
Maxim Integrated Products |
Supervisory Circuits 3-Pin MPU Supervisor |
Data Sheet |
|
|
||||||||||||
