Product Summary

The MAX813LCSA is a microprocessor (μP) supervisory circuit reduce the complexity and number of components required to monitor power-supply and battery functions in μP systems. These devices significantly improve system reliability and accuracy compared to separate ICs or discrete components. Applications include Computers, Controllers, Intelligent Instruments, Automotive Systems and Critical μP Power Monitoring.

Parametrics

MAX813LCSA absolute maximum ratings: (1)VCC: -0.3V to 6.0V; (2)All Other Inputs (Note 1): -0.3V to (VCC + 0.3V); (3)VCC: 20mA; (4)GND: 20mA; (5)Output Current (all outputs): 20mA; (6)Operating Temperature Ranges: 0℃ to +70℃; (7)Storage Temperature Range: -65℃ to +160℃; (8)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX813LCSA features: (1)μMAX Package: Smallest 8-Pin SO; (2)Guaranteed RESET Valid at VCC = 1V; (3)200ms Reset Pulse Width; (4)Debounced TTL/CMOS-Compatible Manual-Reset Input; (5)Active-High Reset Output; (6)Voltage Monitor for Power-Fail or Low-Battery Warning.

Diagrams

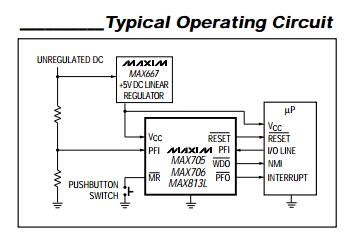

MAX813LCSA Typical Operating Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAX813LCSA
MAX813LCSA
Maxim Integrated Products
Supervisory Circuits
Data Sheet
Negotiable
MAX813LCSA+
MAX813LCSA+
Maxim Integrated Products
Supervisory Circuits uPower Supervisor
Data Sheet
0-1: $2.39
1-25: $1.60
25-50: $1.16
50-100: $1.15
MAX813LCSA+T
MAX813LCSA+T
Maxim Integrated Products
Supervisory Circuits uPower Supervisor
Data Sheet
0-2070: $1.03
2070-2500: $1.03
MAX813LCSA-T
MAX813LCSA-T
Maxim Integrated Products
Supervisory Circuits
Data Sheet
Negotiable
