SN75LBC176ADR

differential bus transceiver, monolithic, 200 mV, 700 μA, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	1.00 / Piece
51 ~ 500 :	0.80 / Piece
501 ~ 5000 :	0.50 / Piece

PartNumber:: SN75LBC176ADR

Brand:: Texas Instruments - TI | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 50000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Chan's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-03

From Other Seller

Part Number:SN75LBC176ADR
US $0.50 - 1.00
Quantity:

piece

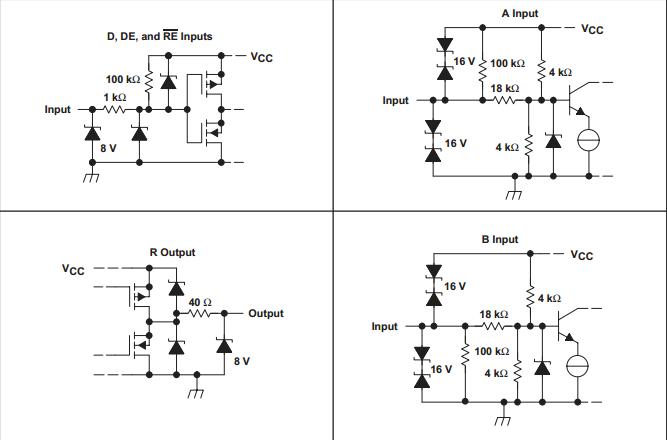

Product Summary

The SN75LBC176ADR is a differential bus transceiver which is a monolithic, integrated circuit designed for bidirectional data communication on multipoint bus-transmission lines. They are designed for balanced transmission lines and are compatible with ANSI standard TIA/EIA-485-A and ISO 8482. The A version offers improved switching performance over its predecessors without sacrificing significantly more power. Applications include High Reliability Automotive Applications, Configuration Control / Print Support and qualification to Automotive Standards.

Parametrics

SN75LBC176ADR absolute maximum ratings: (1)Supply voltage, VCC (see Note 1): -0.3 V to 6 V; (2)Voltage range at any bus terminal (A or B): -10 V to 15 V; (3)Input voltage, VI (D, DE, R, or RE): -0.3 V to VCC + 0.5 V; (4)Storage temperature range: -65 to 150℃; (5)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

SN75LBC176ADR features: (1)High-Speed Low-Power LinBiCMOS Circuitry Designed for Signaling Rates Up to 30 Mbps; (2)Bus-Pin ESD Protection Exceeds 12 kV HBM; (3)Compatible With ANSI Standard TIA/EIA-485-A and ISO 8482:1987(E); (4)Low Skew; (5)Designed for Multipoint Transmission on Long Bus Lines in Noisy Environments; (6)Very Low Disabled Supply-Current Requirements: 700 μA Maximum; (7)Common Mode Voltage Range of -7 V to 12 V; (8)Thermal-Shutdown Protection; (9)Driver Positive and Negative Current Limiting; (10)Open-Circuit Fail-Safe Receiver Design; (11)Receiver Input Sensitivity: ±200 mV Max; (12)Receiver Input Hysteresis: 50 mV Typ; (13)Glitch-Free Power-Up and Power-Down Protection.
