Product Summary
The SP202ECN is a line driver and receiver pair that meets the specifications of RS-232 and V.28 serial protocols with enhanced ESD performance. The ESD tolerance has been improved on these devices to over ±15KV for both Human Body Model and IEC1000-4-2 Air Discharge Method. As with the initial versions, the SP202ECN features at least 120Kbps data rate under load, 0.1µF charge pump capacitors, and overall ruggedness for commercial applications.
Parametrics
SP202ECN absolute maximum ratings: (1)Vcc: +6V; (2)V+: (Vcc-0.3V) to +11.0V; (3)V: -11.0V; (4)TIN: -0.3 to (Vcc +0.3V); (5)RIN: ±15V.
Features
SP202ECN features: (1)Operates from Single +5V Power Supply; (2)Meets All RS-232D and ITU V.28 Specifications; (3)Operates with 0.1μF to 10μF Capacitors; (4)High Data Rate – 120Kbps Under Load; (5)Low Power Shutdown ≤1μA (Typical); (6)3-State TTL/CMOS Receiver Outputs; (7)Low Power CMOS – 3mA Operation.

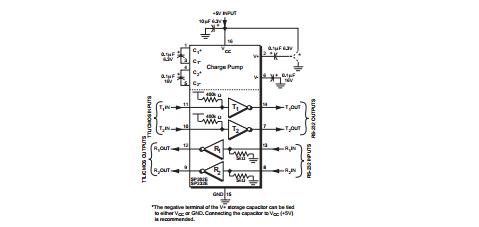

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SP202ECN-L |
Exar |
RS-232 Interface IC RS232 2Tx/2Rx temp 0C to 70C |
Data Sheet |
|
|
|||||||||||||
SP202ECN-L/TR |
Exar |
RS-232 Interface IC HIGH PERFORMANCE RS232 0-70C |
Data Sheet |
|
|
