Product Summary

The SP232ACT is an enhanced versions of the Sipex SP232 RS-232 line driver/receiver. The SP232ACT is pin-for-pin replacements for its earlier version and will operate in its sockets. Performance enhancements include 10V/μs slew rate, 120k bits per second guaranteed transmission rate, and increased drive current for longer and more flexible cable configurations. Ease of use enhancements include smaller, 0.1μF charge pump capacitors, enhanced ESD protection, low power dissipation and overall ruggedized construction for commercial environments. The series is available in plastic and ceramic DIP and SOIC packages operating over the commercial, industrial and military temperature ranges.

Parametrics

SP232ACT absolute maximum ratings: (1)Vcc: +6V; (2)V+: (Vcc-0.3V) to +13.2V; (3)V-: 13.2V.

Features

SP232ACT features: (1)Operates from Single 5V Power Supply; (2)Meets All RS-232D and V.28 Specifications; (3)Multiple Drivers and Receivers; (4)Small Charge Pump Capacitors - 0.1μF; (5)Operates with 0.1μF and 100μF Capacitors; (6)High Data Rate – 120kbps Under Load; (7)High Output Slew Rate –10V/μs Under Load; (8)Low Power Shutdown ≤1μA; (9)3-State TTL/CMOS Receiver Outputs; (10)±30V Receiver Input Levels; (11)Low Power CMOS – 15mA Operation.

Diagrams

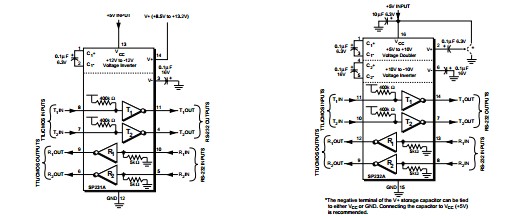

SP232ACT Typical Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SP232ACT-L
SP232ACT-L

Exar

RS-232 Interface IC RS232 ESD 2KV temp 0C to 70C

Data Sheet

0-1: $0.64
1-25: $0.51
25-100: $0.44
100-250: $0.39
SP232ACT-L/TR
SP232ACT-L/TR

Exar

RS-232 Interface IC 5V SNGL SUPPLY RS-232 0-70C

Data Sheet

0-1: $0.67
1-25: $0.50
25-100: $0.43
100-250: $0.36
