Product Summary
The ST232CN is a 2 driver, 2 receiver device following EIA/TIA-232 and V.28 communication standard. It is particularly suitable for applications where ±12V is not available. The ST232CN uses a single 5V power supply and only four external capacitors (0.1µF). Typical applications are in: Portable Computers, Low Power Modems, Interfaces Translation, Battery Powered RS-232 System, Multi-Drop RS-232 Networks.
Parametrics
ST232CN absolute maximum ratings: (1)Supply Voltage: -0.3 to 6 V; (2)Transmitter Input Voltage Rang:e -0.3 to (VCC + 0.3) V; (3)Receiver Input Voltage Range: ±30 V; (4)Transmitter Output Voltage Range; (V+ + 0.3) to (V- - 0.3) V; (5)Receiver Output Voltage Range: -0.3 to (VCC + 0.3) V; (6)Storage Temperature Range -65 to +150℃.
Features
ST232CN features: (1)supply voltage range from 4.5V to 5.5V; (2)supply current:5mA; (3)transmitter output voltage swing: ±7.8V; (4)data rate: 220Kbps.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

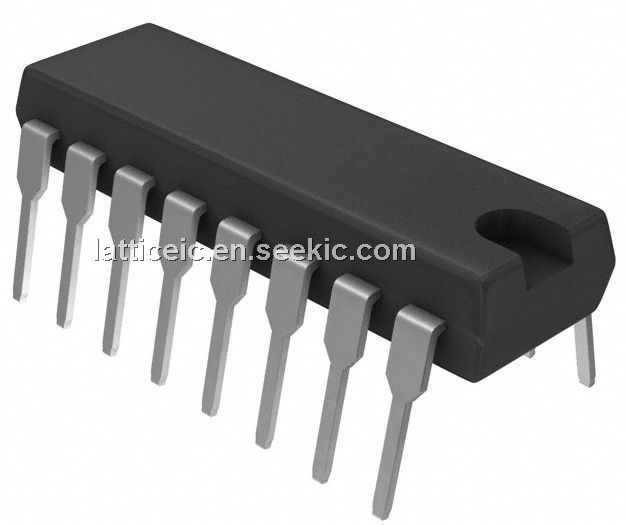

ST232CN |
STMicroelectronics |
Buffers & Line Drivers 5V 2Driver/2Receiver |
Data Sheet |
|
|
|||||||||||||
