ST485EBDR

low power transceiver, ±15KV, 300μA, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	0.40 / Piece
51 ~ 500 :	0.30 / Piece
501 ~ 5000 :	0.20 / Piece

PartNumber:: ST485EBDR

Brand:: STMicroelectronics - ST | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 50000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Chan's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-13

From Other Seller

Part Number:ST485EBDR
US $0.20 - 0.40
Quantity:

piece

Product Summary

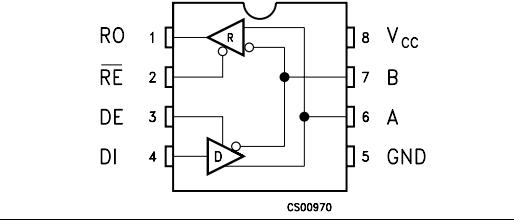

The ST485EBDR is al low power transceiver for RS-485 and RS-422 communication. Each driver output and receiver input is protected against ±15KV electrostatic discharge (H.B.M.) (ESD) shocks, without latcup. These parts contain one driver and one receiver in half duplex configuration. This transceiver draw 300μA (typ.) of supply current when unloaded or fully loaded with disabled drivers. It operates from a single 5V supply.

Parametrics

ST485EBDR absolute maximum ratings: (1)Supply Voltage: 7 V; (2)Control Input Voltage (RE, DE): -0.5 to (VCC + 0.5) V; (3)Driver Input Voltage (DI): -0.5 to (VCC + 0.5) V; (4)Driver Output Voltage (A, B): ± 14 V; (5)Receiver Input Voltage (A, B): ± 14 V; (6)Receiver Output Voltage (RO): -0.5 to (VCC + 0.5) V.

Features

ST485EBDR features: (1)Low quiescent current; (2)designed for RS-485 interface applications; (3)-7V to 12V common mode input voltage range; (4)ESD protection; (5)allows up to 64 transceives on the bus.
