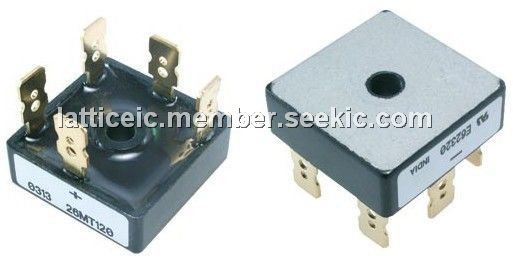

Product Summary

The 26MT120 is a 3 phrase bridge rectifier. It is intended for use in general purpose and instrumentation applications.

Parametrics

26MT120 absolute maximum ratings: (1)IO Maximum DC output current @ TC: 25 A @ 70℃; (2)VF(TO) 1 Low-level of threshold voltage: 0.88 V; (3)VF(TO)2 High-level of threshold voltage: 1.13 V; (4)rt1 Low-level forward slope resistance: 7.9 mΩ; (5)IRRM Max. DC reverse current: 100 μA.

Features

26MT120 features: (1)Universal, 3 way terminals: push-on, wrap around or solder; (2)High thermal conductivity package, electrically insulated case; (3)Center hole fixing; (4)Excellent power/volume ratio; (5)UL E 62320 approved; (6)Terminals Solderable as per MIL-STD-202 METHOD 208, solder: Sn/Pb (60/40).

Diagrams

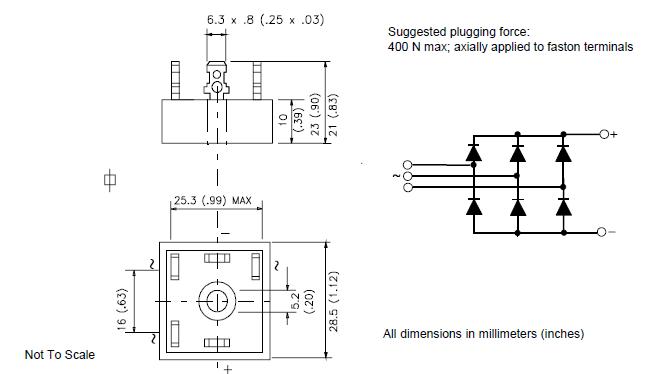

26MT120 package dimensions
