ADM202EANZ

Line Driver, 6 V, ±15 kV, 450 mW, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	0.60 / Piece
51 ~ 500 :	0.45 / Piece
501 ~ 5000 :	0.30 / Piece

PartNumber:: ADM202EANZ

Brand:: Analog Devices - ADI | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 50000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Chan's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-08

From Other Seller

Part Number:ADM202EANZ
US $0.30 - 0.60
Quantity:

piece

Product Summary

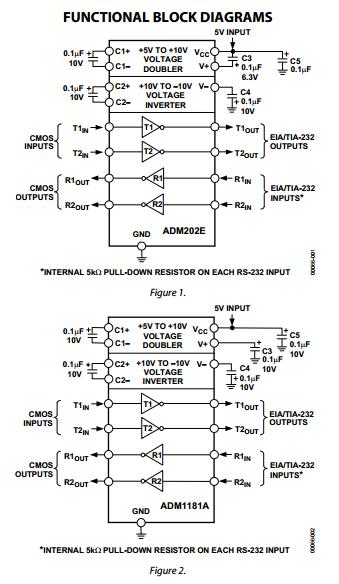

The ADM202EANZ is a robust, high speed, 2-channel RS-232/V.28 interface device that operates from a single 5 V power supply. Both products are suitable for operation in harsh electrical environments and are compliant with the EU directive on EMC (89/336/EEC). Both the level of electromagnetic emissions and immunity are in compliance. EM immunity includes ESD protection in excess of ±15 kV on all I/O lines, fast transient/burst protection (1000-4-4), and radiated immunity (1000-4-3). Applications include General-purpose RS-232 data link, Portable instruments and PDAs .

Parametrics

ADM202EANZ absolute maximum ratings: (1)VCC: -0.3 V to +6 V ; (2)V+: (VCC-0.3 V) to +14 V ; (3)V–: +0.3 V to -14 V; (4)TIN: 0.3 V to (V+, +0.3 V) ; (5)RIN: ±30 V; (6)TOUT: ±15 V ; (7)ROUT: –0.3 V to (VCC + 0.3 V); (8)Power Dissipation N-16: 450 mW; (9)Power Dissipation R-16: 450 mW; (10)Power Dissipation RU-16: 500 mW; (11)Operating Temperature Range: –40℃ to +85℃; (12)Storage Temperature Range: –65℃ to +150℃ ; (13)Lead Temperature (Soldering, 10 sec): 300℃.

Features

ADM202EANZ features: (1)Complies with 89/336/EEC EMC directive ; (2)ESD protection to IEC1000-4-2 (801.2) ; (3)±8 kV: contact discharge ; (4)±15 kV: air-gap discharge ; (5)±15 kV: human body model ; (6)EFT fast transient/burst immunity (IEC1000-4-4) ; (7)Low EMI emissions (EN55022) ; (8)230 kbits/s data rate guaranteed ; (9)TSSOP package option ; (10)Upgrade for MAX202E, 232E, LT1181A.
