DS1250Y-70

SRAM, Low-power CMOS, 4096k, 70 ns, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.00~12.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	12.00 / Piece
51 ~ 500 :	8.00 / Piece
501 ~ 5000 :	6.00 / Piece

PartNumber:: DS1250Y-70

Brand:: DALLAS - DALLAS | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 20000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Chan's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-08

From Other Seller

Part Number:DS1250Y-70
US $6.00 - 12.00
DS1250Y-70IND

US $7.18 - 8.05 / Piece
(0) Remove
Quantity:

piece

Product Summary

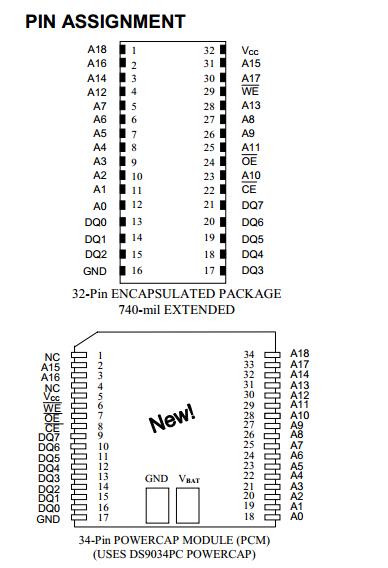

The DS1250Y-70 is a 4096k Nonvolatile SRAM which is 4,194,304-bit, fully static, nonvolatile SRAMs organized as 524,288 words by 8 bits. Each complete NV SRAM has a self-contained lithium energy source and control circuitry which constantly monitors VCC for an out-of-tolerance condition. When such a condition occurs, the lithium energy source is automatically switched on and write protection is unconditionally enabled to prevent data corruption. DIP-package DS1250Y-70 can be used in place of existing 512k x 8 static RAMs directly conforming to the popular byte-wide 32-pin DIP standard. There is no limit on the number of write cycles that can be executed and no additional support circuitry is required for microprocessor interfacing.

Parametrics

DS1250Y-70 absolute maximum ratings: (1)Voltage on Any Pin Relative to Ground: -0.3V to +7.0V; (2)Operating Temperature: 0℃ to 70℃, -40℃ to +85℃ for IND parts; (3)Storage Temperature: -40℃ to +70℃, -40℃ to +85℃ for IND parts; (4)Soldering Temperature: 260℃ for 10 seconds.

Features

DS1250Y-70 features: (1)10 years minimum data retention in the absence of external power; (2)Data is automatically protected during power loss; (3)Replaces 512k x 8 volatile static RAM, EEPROM or Flash memory; (4)Unlimited write cycles; (5)Low-power CMOS; (6)Read and write access times as fast as 70 ns; (7)Lithium energy source is electrically disconnected to retain freshness until power is; (8)applied for the first time; (9)Full ±10% VCC operating range (DS1250Y); (10)Optional industrial temperature range of -40℃ to +85℃, designated IND; (11)JEDEC standard 32-pin DIP package; (12)New PowerCap Module (PCM) package.
