Product Summary

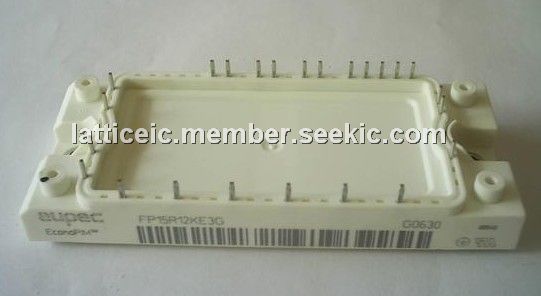

The FP15R12KE3G is an IGBT module.

Parametrics

FP15R12KE3G absolute maximum ratings: (1)repetitive peak reverse voltage, VRRM: 1600V; (2)maximum RMS current at rectifier output, IRMSmax: 60A; (3)DC forward current, Id: 15A; (4)surge forward current, IFSM: 260A; (5)I2t value, I2t: 500A2s.

Features

FP15R12KE3G features: (1)DC forward current, IF: 15A; (2)repetitive peak forw. current, IFRM: 30A; (3)I2t value, I2t: 60A2s.

Diagrams

FP15R12KE3G block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FP15R12KE3G
FP15R12KE3G
Infineon Technologies
IGBT Transistors 1200V 15A PIM
Data Sheet
0-1: $41.70
1-5: $39.62
5-10: $37.53
