Product Summary

The FP40R12KT3G is IGBT Module.

Parametrics

FP40R12KT3G absolute maximum ratings: (1)collector-emitter voltage: 1200V; (2)DC-collector current: 55A; (3)repetitive peak collector current: 80A; (4)total power dissipation: 210W; (5)gate-emitter peak voltage: ± 20V.

Features

FP40R12KT3G features: (1)Collector-emitter saturation voltage: 2.05V; (2)Gate threshold voltage: 5.0V to 6.5V; (3)Gate charge: 0.33μC; (4)Internal gate resistor: 6.0Ω; (5)Input capacitance: 2.50nF; (6)Reverse transfer capacitance: 0.09nF.

Diagrams

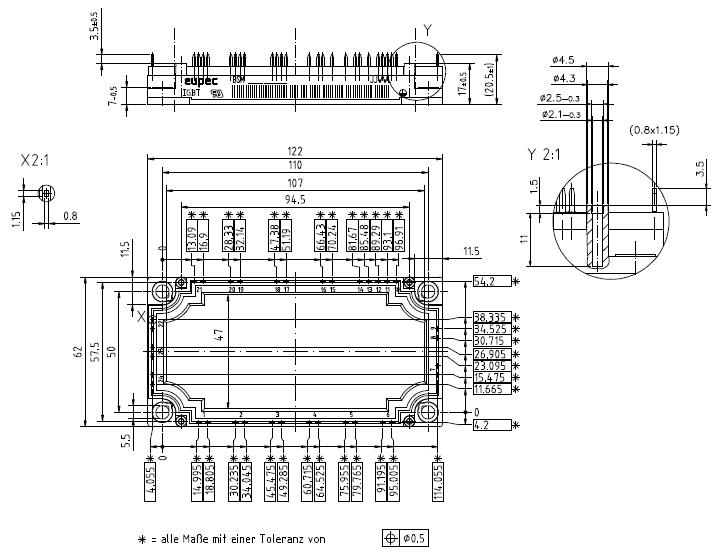

FP40R12KT3G package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

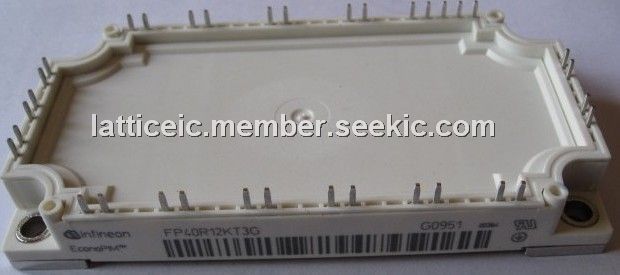

FP40R12KT3G
FP40R12KT3G

Infineon Technologies

IGBT Modules N-CH 1.2KV 55A

Data Sheet

0-8: $60.05
8-10: $57.47
