Product Summary

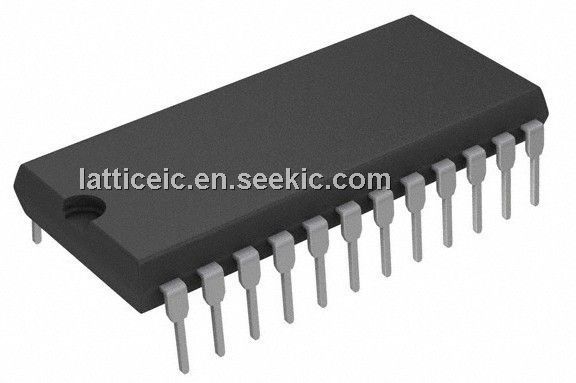

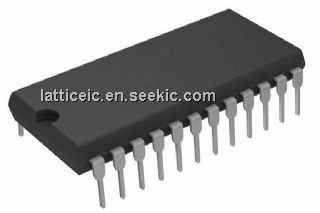

The MAX7219CNG+ is a compact, serial input/output common-cathode display driver that interfaces microprocessors (µPs) to 7-segment numeric LED displays of up to 8 digits, bar-graph displays, or 64 individual LEDs. Included on-chip are a BCD code-B decoder, multiplex scan circuitry, segment and digit drivers, and an 8x8 static RAM that stores each digit. Only one external resistor is required to set the segment current for all LEDs. Applications include Bar-Graph Displays, 7-Segment Displays, Industrial Controllers, Panel Meters and LED Matrix Displays.
Parametrics
MAX7219CNG+ absolute maximum ratings: (1)V+: -0.3V to 6V; (2)DIN, CLK, LOAD, CS: -0.3V to 6V; (3)All Other Pins: -0.3V to (V+ + 0.3V); (4)Storage Temperature Range: -65℃ to +160℃; (5)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX7219CNG+ features: (1)10MHz Serial Interface; (2)Individual LED Segment Control; (3)Decode/No-Decode Digit Selection; (4)150μA Low-Power Shutdown (Data Retained); (5)Digital and Analog Brightness Control; (6)Display Blanked on Power-Up; (7)Drive Common-Cathode LED Display; (8)24-Pin DIP and SO Packages.

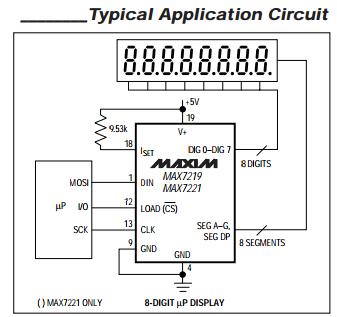

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MAX7219CNG+ |
Maxim Integrated Products |
LED Display Drivers 8-Digit LED Display Driver |
Data Sheet |
|
|
|||||||||||||
